# GENERAL

## OVERVIEW

**LYNX – Ultra-Compact ISR Payload with EO Zoom and IR Imaging**

Gremsy introduces **LYNX**, its most compact and lightweight ISR payload to date, weighing just 190 grams. Engineered for small UAV platforms, LYNX features a distinctive spherical design that enhances aerodynamics and flight stability. Despite its minimal form factor, it integrates a high-resolution EO camera with up to 10x digital zoom alongside an infrared (IR) thermal sensor—delivering powerful dual-spectrum imaging for mission-critical aerial surveillance and reconnaissance operations.

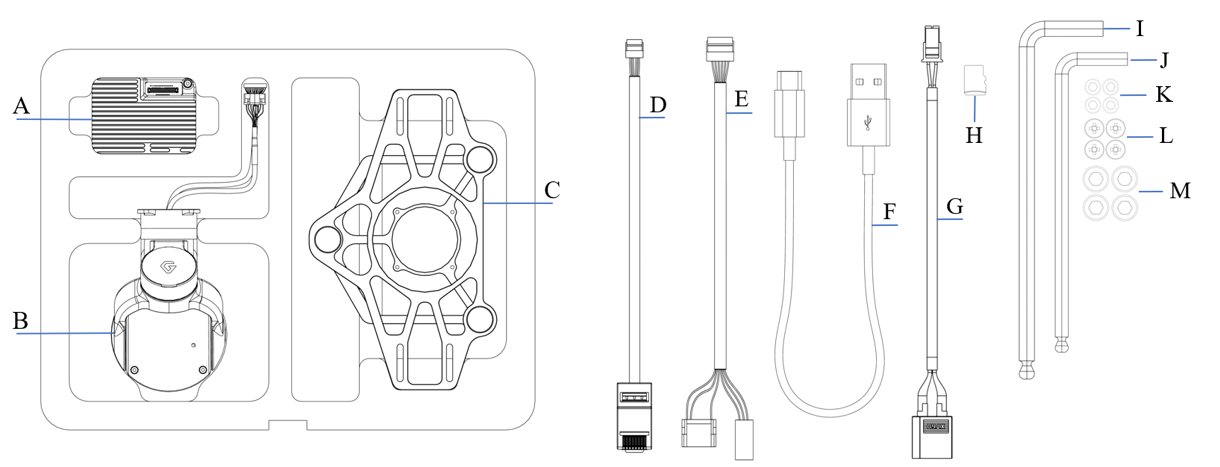

### What's in the box? <a href="#whats-in-the-box" id="whats-in-the-box"></a>

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2FSFiyaVTbIGLEnLMQmG0G%2Fimage.png?alt=media&#x26;token=a1b7da71-a1e6-4add-a404-6798ac8a1dea" alt=""><figcaption></figcaption></figure>

| No. | Items                     | Quantity |
| --- | ------------------------- | -------- |
| A   | MainBoard                 | x1       |
| B   | Lynx Payload              | x1       |
| C   | Lynx Damping              | x1       |
| D   | Ethernet Cable            | x1       |
| E   | Control Cable             | x1       |
| F   | USB-C Cable               | x1       |
| G   | Power Cable               | x1       |
| H   | Micro USB Card            | x1       |
| I   | Allen Key 2.5 (mm)        | x1       |
| J   | Allen Key 12.5 (mm)       | x1       |
| K   | M1.6 x 4 - ISO 4762       | x4       |
| L   | M2 x 4 - Philip Untrathin | x4       |
| M   | M3 x 6 - ISO 4762         | x4       |

## SPECIFICATION

### General Information

| **Specification**            | **LYNX**                                                                                                                    | **LYNX NDAA**                                                                                                               |
| ---------------------------- | --------------------------------------------------------------------------------------------------------------------------- | --------------------------------------------------------------------------------------------------------------------------- |
| Payload Weight (Full System) | 320 – 365 g                                                                                                                 | 320 – 365 g                                                                                                                 |
| Payload Weight               | 235 g                                                                                                                       | 190 g                                                                                                                       |
| Dimensions (DxWxH)           | 80 x 60 x 96 mm                                                                                                             | 80 x 60 x 96 mm                                                                                                             |
| Damping System               | 3-Ball Rubber                                                                                                               | 3-Ball Rubber                                                                                                               |
| IP Rating                    | x                                                                                                                           | x                                                                                                                           |
| Flight Speed                 | 60 km/h to 80 km/h                                                                                                          | 60 km/h to 80 km/h                                                                                                          |
| Input Voltage (Mainboard)    | 15 – 52 VDC                                                                                                                 | 15 – 52 VDC                                                                                                                 |
| Payload Power Input          | 12 VDC @ 5A                                                                                                                 | 12 VDC @ 5A                                                                                                                 |
| Operating Current            | <ul><li>Static: 15W (12V @ 1.25A)</li><li>Dynamic: 18W (12V @ 1.5A)</li><li>Locked Motor (Peak): 40W (12V @ 3.3A)</li></ul> | <ul><li>Static: 13W (12V @ 1.1A)</li><li>Dynamic: 15W (12V @ 1.25A)</li><li>Locked Motor (Peak): 40W (12V @ 3.3A)</li></ul> |
| Operating Temperature        | -20°C \~ 50°C                                                                                                               | -20°C \~ 50°C                                                                                                               |
| Storage Temperature          | -20°C \~ 60°C                                                                                                               | -20°C \~ 60°C                                                                                                               |

### Platform Compatibility

| **Category**                      | **Supported**                                                                                      |
| --------------------------------- | -------------------------------------------------------------------------------------------------- |
| **Drone Platforms**               | Pixhawk / CubePilot / Skynode                                                                      |
| **Autopilot Platforms**           | ArduPilot / PX4                                                                                    |
| **Controllers & Ground Stations** | - Remote Controller - Ground Station with:   + QGroundControl App   + Gremsy Payload Assistant App |
| **SDK Support**                   | Gremsy Payload SDK                                                                                 |

### EO Camera Specifications

| **Specification**              | **LYNX / LYNX NDAA**  |
| ------------------------------ | --------------------- |
| Sensor                         | 1/2.3" CMOS – 12.3 MP |
| Resolution                     | 4056 x 3040           |
| Pixel Size                     | 1.55 µm × 1.55 µm     |
| Field of View (HFOV/VFOV/DFOV) | 60.4° / 32° / 72.4°   |
| Aperture                       | f/2.8                 |
| Focal Length (EFL)             | 5.4 mm                |
| Zoom                           | 1x to 10x Digital     |
| HDR                            | DOL-HDR @ 30 fps      |
| Distortion                     | <3%                   |

### IR Camera Specifications

| **Specification**          | **LYNX Standard**                 | **LYNX NDAA**                     |
| -------------------------- | --------------------------------- | --------------------------------- |
| Sensor Type                | Radiometric Thermal sensor        | VOx Microbolometer (FLIR)         |
| Array Format               | 640 × 512                         | 640 × 512                         |
| Frame Rate                 | 25Hz / 30Hz                       | 60Hz                              |
| Pixel Size                 | 12 µm                             | 12 µm                             |
| Spectral Range             | 8 – 14 µm                         | 8 – 14 µm                         |
| Scene Temperature Range    | To 150°C (high gain), 500°C (low) | To 150°C (high gain), 500°C (low) |
| Lens                       | 19 mm EFL (Fixed Athermal)        | 14 mm EFL (Fixed Focus)           |
| HFOV                       | \~32°                             | 32°                               |
| Digital Zoom               | 1x to 8x                          | 1x to 8x                          |
| Thermal Sensitivity (NETD) | ≤ 50 mK                           | ≤ 50 mK                           |

### Gimbal Specification

| **Specification**         | **LYNX** / **LYNX NDAA**                                                   |
| ------------------------- | -------------------------------------------------------------------------- |
| Mount Type                | Bottom Mount                                                               |
| Gimbal Modes              | Off / Lock / Follow / Mapping                                              |
| Angular Vibration Range   | ±0.01°                                                                     |
| Max Speed (Pan/Tilt/Roll) | 100°/s                                                                     |
| Mechanical Range          | <ul><li>Pan: ±170°</li><li>Roll: ±50°</li><li>Tilt: -140° to 50°</li></ul> |
| Controllable Range        | <ul><li>Pan: ±165°</li><li>Roll: ±30°</li><li>Tilt: -130° to 40°</li></ul> |

### Features

| **Feature**                          | **LYNX / LYNX NDAA** Details                                                                                                                                                      |
| ------------------------------------ | --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| **Object Tracking**                  | EO only  Basic Tracking Frame Rate: 12–15 fps                                                                                                                                     |
| **AI Object Detection**              | <p>EO only Frame Rate: 5 fps <br>Default: Human, Car<br><em>Upgradeable</em></p>                                                                                                  |
| **Camera View Modes**                | EO, IR, EO/IR, IR/EO selectable                                                                                                                                                   |
| **HDMI Video Output**                | 1080p @ 60 fps*Cable < 50 cm recommended for stability*                                                                                                                           |
| **Ethernet Media Access**            | Yes, via HTTP Server                                                                                                                                                              |
| **EagleEye (Scene Overview Window)** | Yes, supported on both EO and IR                                                                                                                                                  |
| **Geotagging**                       | Yes — GPS coordinates, Gimbal orientation, Zoom level                                                                                                                             |
| **Ethernet Video Streaming**         | <p>Selectable resolution: 720p–1080pRTSP (RTP in development)<br>Latency: 100–200 ms (720p H.264)</p>                                                                             |
| **Video Recording**                  | <ul><li><strong>EO</strong>: 3840×2160 @ 60 fps (MKV/MP4) </li><li><strong>IR</strong>: 640×512 (G1 @ 30 fps, F1 @ 60 fps)</li><li><strong>PiP</strong>: 1080p @ 60 fps</li></ul> |
| **Image Capture**                    | <ul><li><strong>EO</strong>: 3840×2160 JPEG </li><li><strong>IR</strong>: 640×512 JPEG / CSV / TIFF </li><li><strong>PiP</strong>: 1920×1080 JPEG</li></ul>                       |
| **Media Storage**                    | <ul><li>MicroSD (up to 128GB)</li><li>Internal Flash (64GB)</li></ul>                                                                                                             |
| **Web App Configuration**            | Yes                                                                                                                                                                               |
| **Radiometric Overlay**              | Yes — on runtime IR video                                                                                                                                                         |
| **3rd-party App Integration**        | Not supported                                                                                                                                                                     |
| **Individual Thermal Stream**        | Yes                                                                                                                                                                               |
| **Raw Thermal Data Stream**          | Yes — up to 5 Hz                                                                                                                                                                  |


---
