CHECKING PAYLOADS AND SKYNODE CONNECTION

1. Equipment Preparation

No.	Device
1	Power Supply
2	Remote
3	VIO Payloads
4	Adapter Dovertail
5	Hub, Linear QR, Ethernet Cable, FFC
6	Skynode
7	Herelink System

2. Items to Check

No.	Items.	Features
1	Settings Extended	Connect VIO Skynode to Remote
2	Remote	Connect VIO Skynode to Remote, Payloads Assistant
3	IP	Connect VIO Skynode to Remote
4	Camera	Connect VIO Skynode to Remote
5	Advanced	Connect VIO Skynode to Remote
6	Radio Status	Connect VIO Skynode to Remote, Auterion Mission Contro

3. Testing Steps

Step 1: Prepare a VIO unit with the Adapter Dovertail, Linear QR.

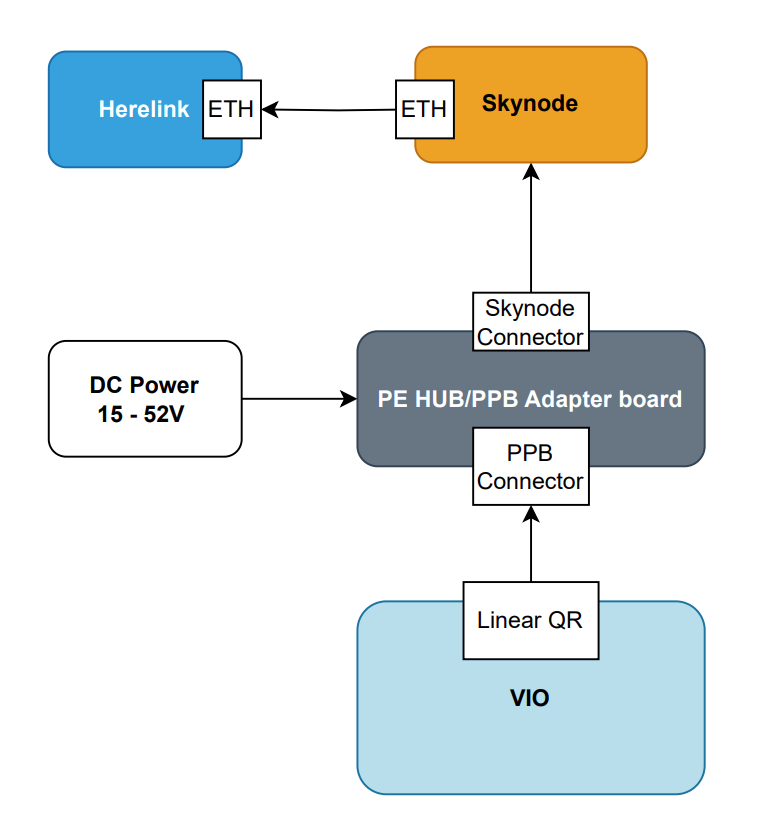

Step 2: Set up signal cables to connect VIO, Skynode, and Herelink System.

● Connect the FFC power and Quick Release to HUB

● Cable’s FFC from HUB connects to Skynode; Ethernet Cable connects to Skynode.

● Ethernet Cable from Skynode connects to HereLink

Step 3: Set up power cables for VIO, Skynode, and Herelink System.

● Connect the power cable to Herelink System, Skynode, and Gremsy Hub.

Step 4: After setting up the cables, configure the IP address.

• Connect a USB type-C cable to VIO and a computer or laptop.

• Access the settings page at http://192.168.144.25:8000/ to configure IP:

  • VIO Address: 192.168.144.24

  • Netmask: 255.255.255.0

  • Gateway: 192.168.144.1

• Click "Apply" after IP setup and confirm with "OK."

Step 5: After configuring VIO’s IP, start the Remote to connect to VIO.

• Launch AuterionMissionControl.

• Launch Payloads Assistant.

• Note: Both applications should be running.

Step 6: In the Payloads Assistant software, verify connection:

• Go to Settings

• Select Custom settings.

• After selecting Custom, proceed to Settings Extended.

• In Settings Extended, check that IP and PORT match the IP set in Step 4.

Step 7: Using Auterion Mission Control

• Verify the VIO Product Name.

• Check video feed functionality:

  • Once the image appears, test various features connected to the Remote, such as Zoom In and Zoom Out.

  • These functions should display as VIO connects with Skynode and can be controlled via the Remote.

Step 8: After Feature Testing

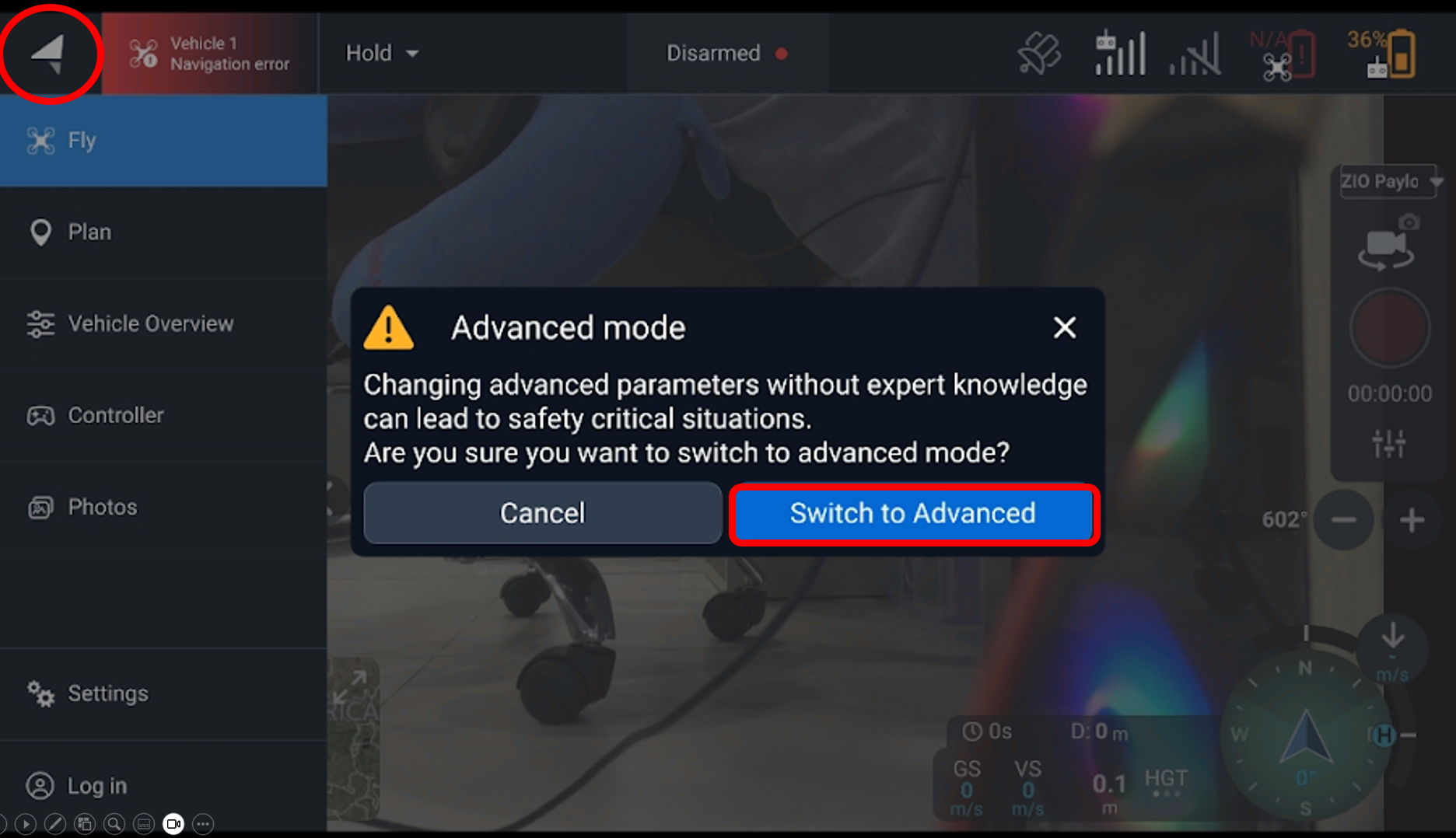

1. Click the icon until a notification message appears.

1. After clicking the icon multiple times, a notification for Advanced mode will appear.

2. Select Switch to Advanced

3. Once in Advanced mode, click the triangle icon one more time.

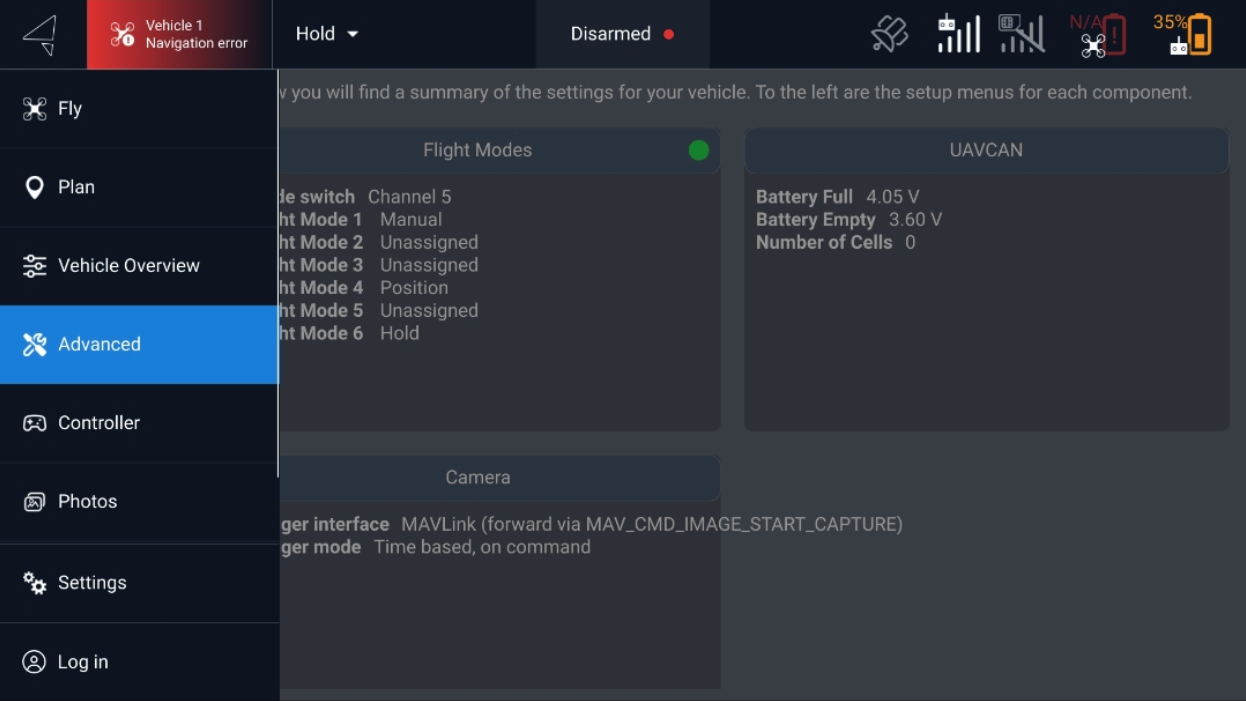

4. Then, select the Advanced menu option.

Step 9: Adjust Settings in the Advanced Menu

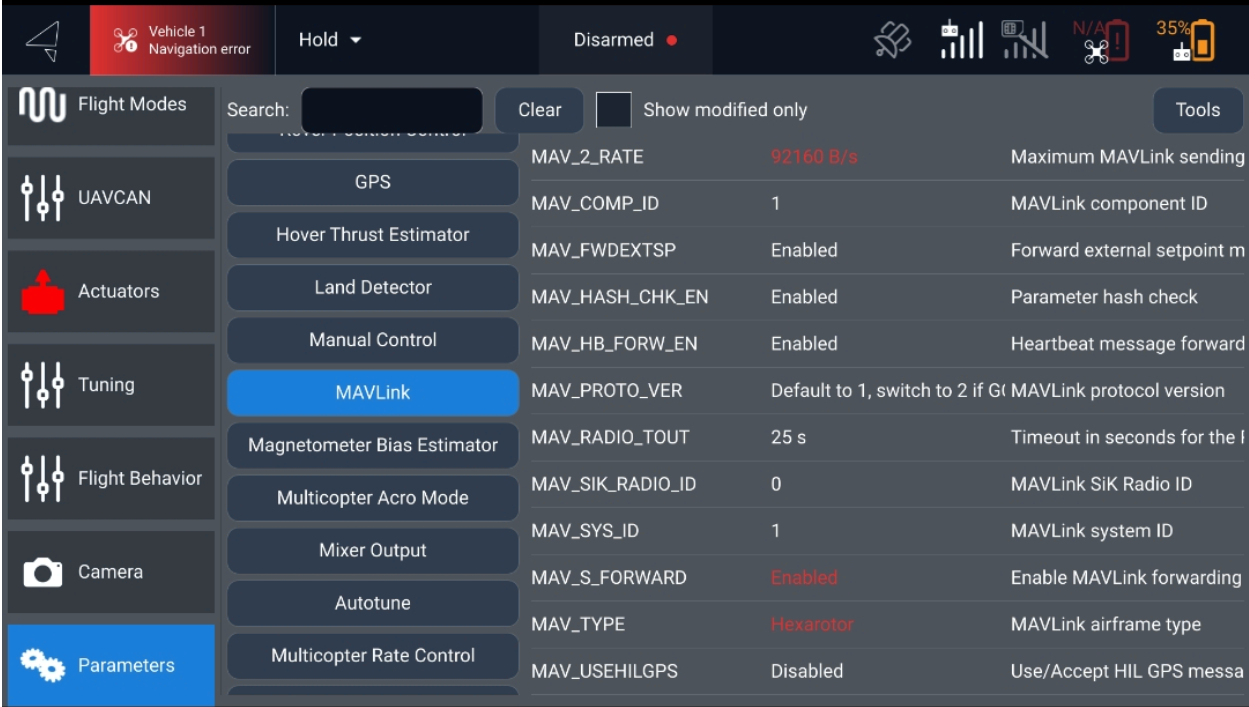

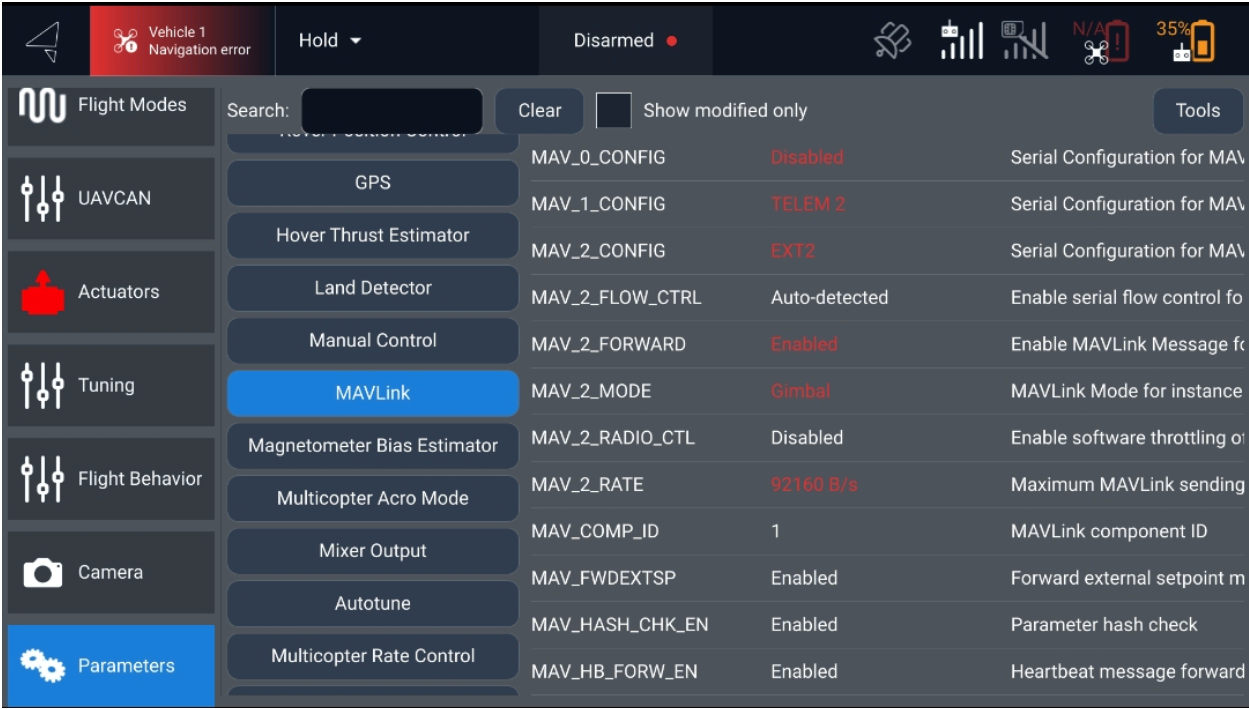

In the Advanced menu, adjust the MAVLink settings as needed.

No.	Parameters	Settings
1	MAV_0_CONFIG	Disabled
2	MAV_1_CONFIG	TELEM 2
3	MAV_2_CONFIG	EXT2
4	MAV_2_FORWARD	Enabled
5	MAV_2_MODE	Gimbal
6	MAV_2_RATE	92160 B/s
7	MAV_S_FORWARD	Enabled
8	MAV_TYPE	Hexarotor

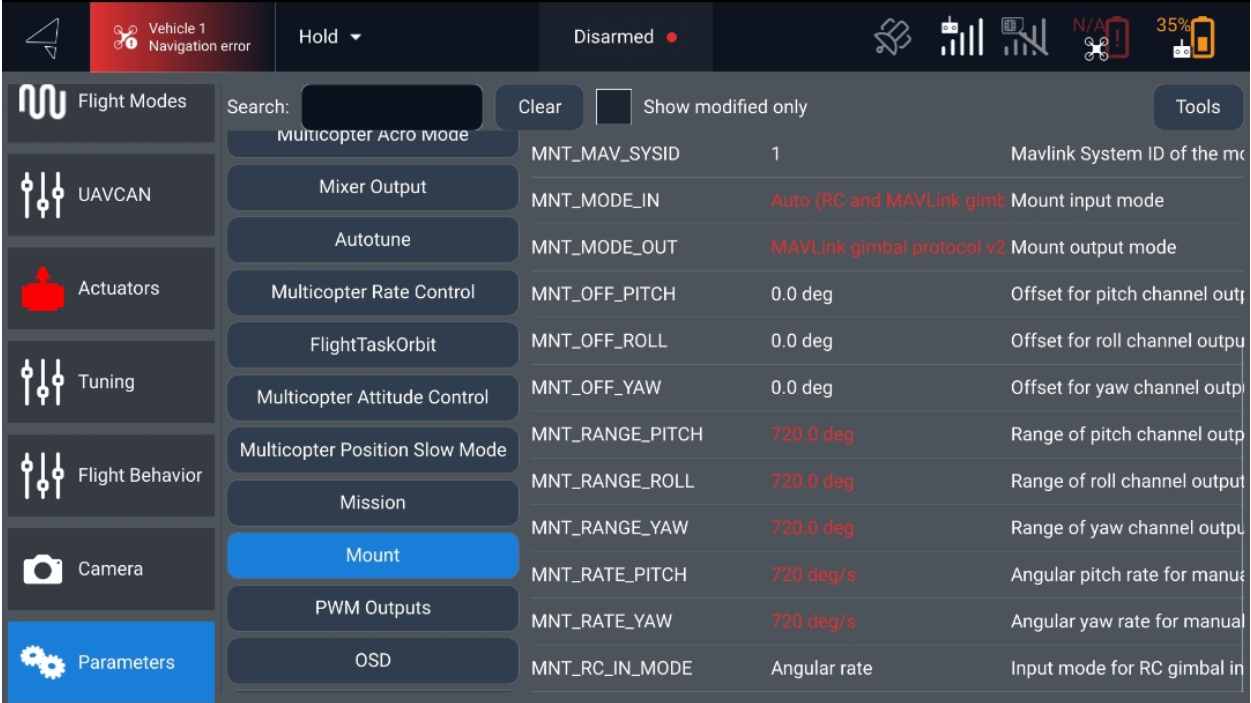

Switch to the Mount section to continue configuring other parameters.

No.	Parameters	Settings
1	MNT_MODE_IN	Auto (RC and MAVLink gimbal Protocol V2)
2	MNT_MODE_OUT	MAVLink gimbal protocol V2
3	MNT_RANGE_PITCH	720.0 deg
4	MNT_RANGE_ROLL	720.0 deg
5	MNT_RANGE_YAW	720.0 deg
6	MNT_RATE_PITCH	720.0 deg
7	MNT_RATE_YAW	720.0 deg
8	MNT_MAN_PITCH	AUX2
9	MNT_MAN_YAW	AUX3
10	MNT_MODE_IN	Auto (RC and MAVLink gimbal Protocol V2)
11	MNT_MODE_OUT	MAVLink gimbal protocol V2

Step 10: After configuring the MAVLink and Mount settings, review and verify all adjustments.

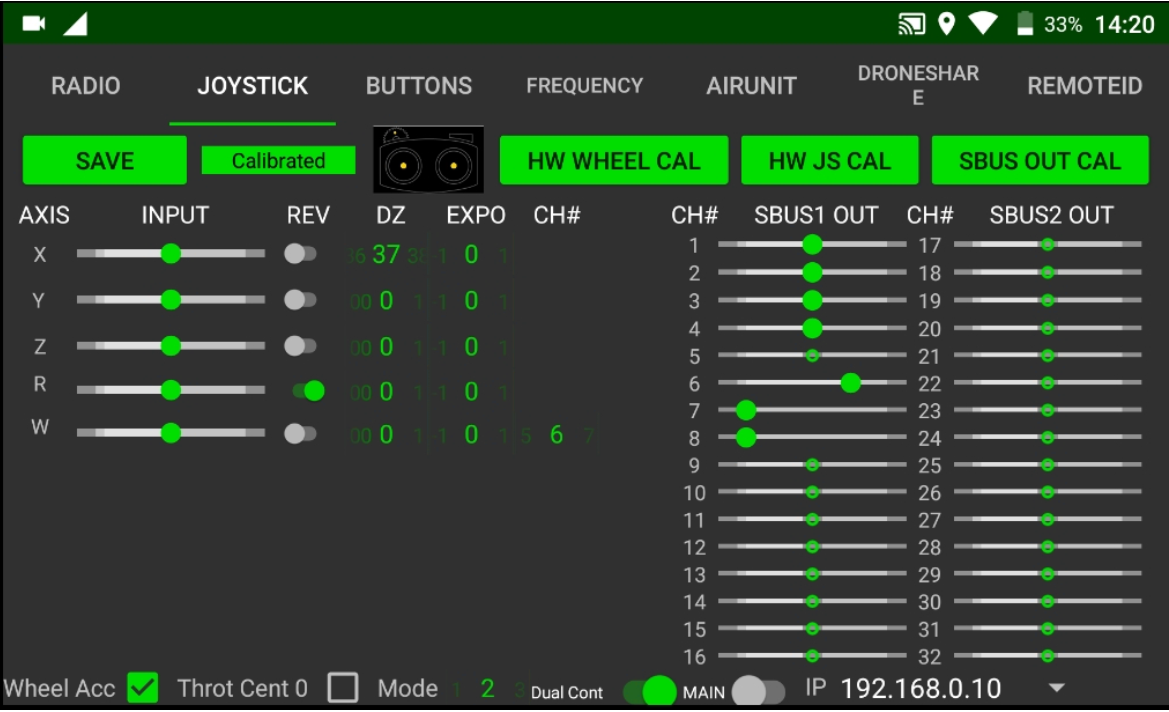

Check the JOYSTICK

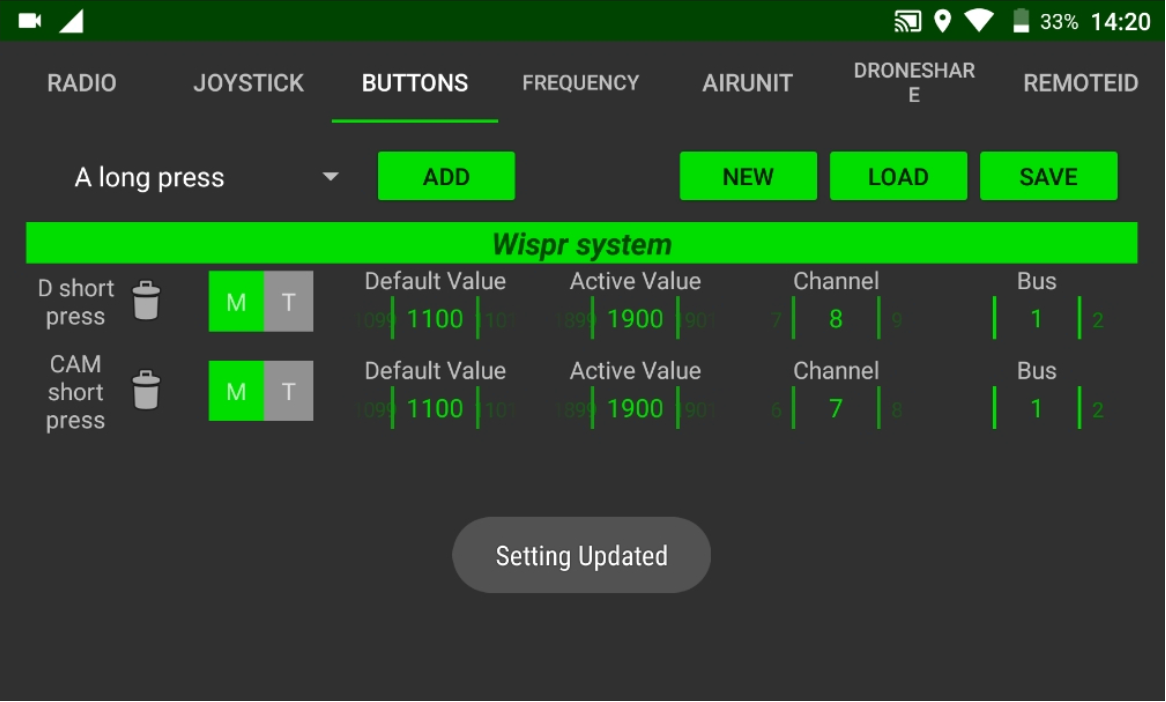

Check the BUTTONS and CHANNEL
