# MOUNTING INSTRUCTIONS

## STEP 1: Attach the Motor Mounting adapter to Vio gimbal

1. Make sure the lock ring is in the Unlock position
2. Make sure that the marking in the red circle are aligned with each other.
3. Assemble the motor mounting adapter to the upper of the gimbal.

<figure><img src="https://lh7-rt.googleusercontent.com/docsz/AD_4nXdomeNC2J1-UQ_n1poT8k8_7l7WcwNF0XH5unidh0Y36rI0UXCoQi-XXXNvxKDP2bNwMVsjXQA3Wr2ducYKgy1N1NcSHZNj2NadY79kwJ5ihadtgvx9tTbmINK-opWv5pxs4lEgWgByNqmurcbKVJvEW4y5aJd_YD2IoxaB1Ptq0oXsq6Veg6A?key=kUkUl95MGBZElJ9CAbpv-Q" alt=""><figcaption><p>Marked position on the Motor adapter and made position on the Vio gimbal</p></figcaption></figure>

<br>

<figure><img src="https://lh7-rt.googleusercontent.com/docsz/AD_4nXe5uAHxQzdOn5c6oDdsxhgVEC78LVbx2gYiMrnE7qs-aaFGulFCH0Dp0KqqrdX8-Tc1MI62sLlfiqilfgsLYoDGfrguu0ZY5WH0TgOwHFQLgMXkP7-OvMGe52q38iVWoZGfzp9OxRhh3cdR91byN3AAQtghGJC4FqfHSpdPCfeEkQ-RNGeRgQ?key=kUkUl95MGBZElJ9CAbpv-Q" alt=""><figcaption><p>Unlock Position</p></figcaption></figure>

<figure><img src="https://lh7-rt.googleusercontent.com/docsz/AD_4nXcNTpVerq99u4wMFqVTFORhsVgiolkZg88RjdigIobCdsfHIIPV3o_uoQBNqUVBY7E5T4HKOX844JagX0Dy95swGv44lzbvJk9VsNNw1Cbmt5JRPZTDkvyPQOxgbMgY-b_4ZP4BU2F3ikUBkmE3xrgMhzhjiMjv8hBzrLU_63C14K4WhDi9NVA?key=kUkUl95MGBZElJ9CAbpv-Q" alt="" width="563"><figcaption><p>Connecting the Motor Adapter to the Vio</p></figcaption></figure>

## STEP 2: Rotate the Lock ring to the lock position

<figure><img src="/files/VfWeZkgbsvrx7ZRL2PBW" alt=""><figcaption><p>Lock position</p></figcaption></figure>

## STEP 3: Fix the Motor adapter

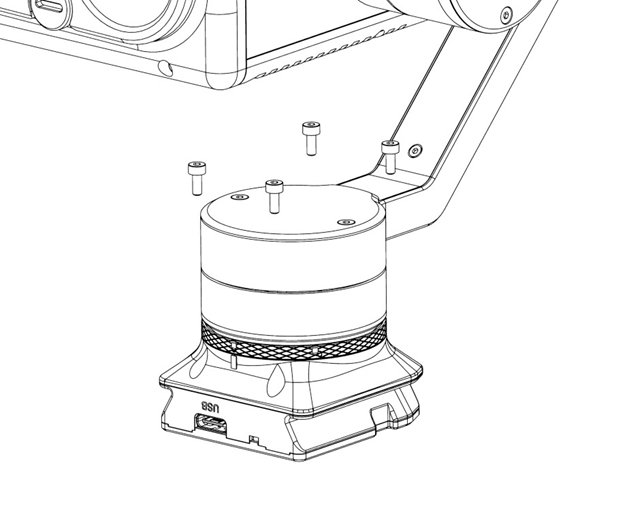

<figure><img src="/files/bpN7BiHzQ4ZkzNNLeI5I" alt=""><figcaption><p>Tighten 3x M2x5 screws to secure the adapter to the top of the Pan motor</p></figcaption></figure>

## STEP 4: Assemble Smart Dovetail Adapter&#x20;

<figure><img src="/files/upy4cwTzKLgjxukgGdAo" alt="" width="409"><figcaption></figcaption></figure>

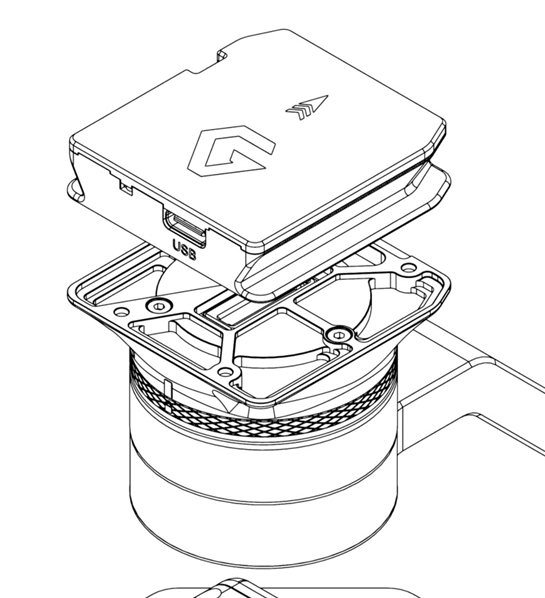

<figure><img src="/files/i5kxcnVvdf1uCITy8va4" alt="" width="483"><figcaption><p>Turn the Vio Gimbal upside down and tighten 4xM2x4 Screw</p></figcaption></figure>

## STEP 5: Complete

<figure><img src="/files/Pv2yYd7FWtqY49hjap8G" alt=""><figcaption></figcaption></figure>


---
