Zio Payloads
Overview
Zio is a high-resolution zoom payload that combines a Sony sensor with high-stabilized three-axis gimbal technology. It enables industrial inspectors and surveyors to zoom into objects of interest and effortlessly transmit video at 4K resolution, ready to be utilized for a variety of different inspection, surveying, and public safety jobs.

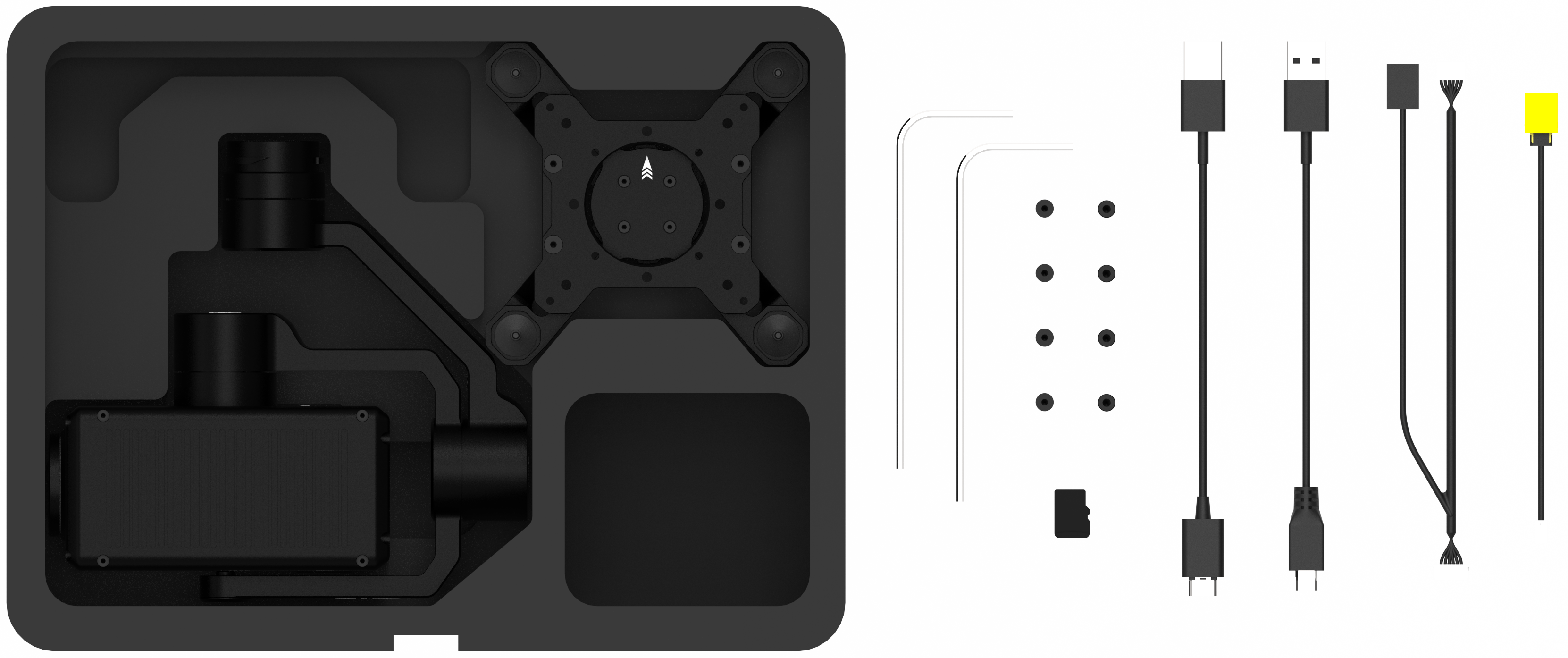

In the box
1
Zio Payload
1
2
Zio Damping
1
3
Zio Quick Release
1
4
Allen key 2mm
1
5
Allen key 2.5mm
1
6
M3 x 6 Hexagon Screw Bolt Cut Head
4
7
M3 x 6 Hexagon Screw Flat Head
4
8
USB Type A to USB Type C Cable
1
9
Micro USB Cable
1
10
Zio Control Cable
1
11
Zio Power Cable
2
12
Micro SD Card SDXC I, 64GB
1
Components
Overview Diagram
Specification
General
Payload Dimensions (DxWxH)
145mm × 90mm × 148mm
Weight
480g (1.06 lbs)
Input Voltage
14.5V - 52V
Power Consumption
12W-48W
Connections
USB 2.0, UART, Ethernet, Micro HDMI
Remote Software
QGroundControl
Streaming Video
HDMI output: 1080p60 (1920x1080 | 60fps)
Ethernet output: 720p60 (1280x720 | 60fps)
Video Bit Rate is adjustable
Storage Temperature
32° F ~ 122° F (0° C ~ 50° C)
Operating Temperature
32° F ~ 122° F (0° C ~ 50° C)
Compatible Drones
Drone supported by PX4 and Ardupilot
Recommended FC: Cube
Gimbal
Angular Vibration Range
±0.01°
Gimbal Mount
Bottom mount (Detachable)
Controllable Range
Tilt: ±120°
Pan: ±320°
Mechanical Range
Tilt: +138° to -198°
Pan: ±335°
Roll: +75° to -265°
Max Controllable Speed
Tilt: 100°/s
Pan: 100°/s
Working Current:
Static current: 1.0A (@12V)
Dynamic current: 1.5A (@12V)
Locked motor current: Max 4.0A (@12V)
Camera
Sensor
1/2.5" Exmor R CMOS
Effective Pixels
8.51 MP
Zoom
Optical: 20x
Digital: 12x
Super Resolution: 30x
Combine: 240x (recommend for photography only)
Camera Lens
f/2.0 to f/3.8 (4.4 to 88.4mm Equivalent)
FOV
Wide: 72°
Telephoto: 4.1°
Resolution
Photo: 3840 x 2160
Video: 3840 x 2160 @ 30 fps | 1920 x 1080 @ 60fps
Aspect Ratio
Photo: 16:9
Format
Photo: JPEG
Video: MP4
Defog mode
On/Off (Low, Mid, High)
White Balance
Auto, Indoor, Outdoor
Shutter Speed
1/30 to 1/2000s
Exposure mode
Auto, Shutter speed, Iris, Bright, Manual
Zoom mode
Combine, Separate, Super Resolution
Storage
MicroSDXC I (a 64GB SD card included)
