# MOUNTING

#### M-PORT QUICK RELEASE (IP VERSION) MOUNTING DIMENSION

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2F2jo0yYpUVWZmHKa3qm7R%2Fimage.png?alt=media&#x26;token=86a9e991-a78f-4a37-92f0-081e8a02009a" alt=""><figcaption><p>M-Port IP version</p></figcaption></figure>

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2FzQjCMYVab3h2U6AXamAx%2Fimage.png?alt=media&#x26;token=99f8248e-b59e-4bbd-9ba7-504d8820212b" alt=""><figcaption></figcaption></figure>

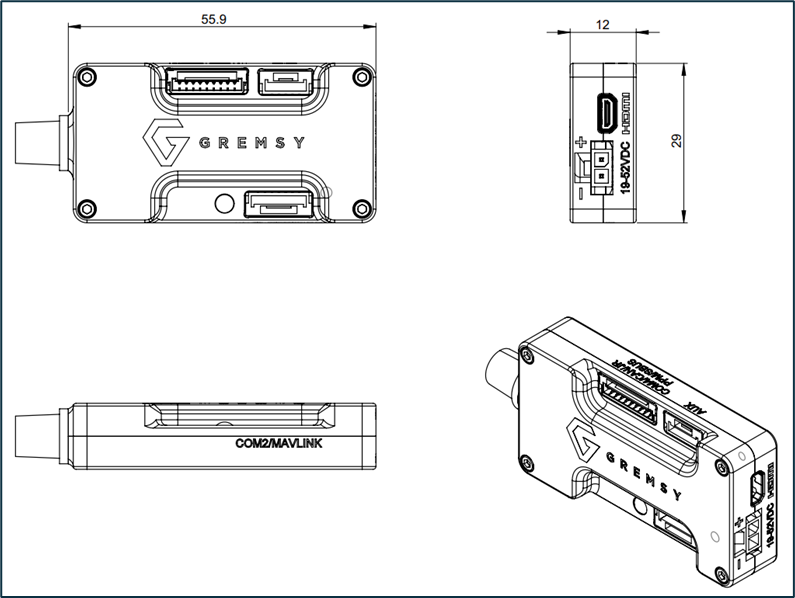

**CONNECTION HUB MOUNTING DIMENSION**

{% hint style="info" %}
The connection hub is not IP-rated, so please ensure it is mounted under the drone body or in a location protected from water and dust
{% endhint %}

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2FE8cZzNz1oHNgIpTcpoC6%2Fimage.png?alt=media&#x26;token=d5657370-d2d3-4095-a34a-d384b349c740" alt=""><figcaption></figcaption></figure>

### QUICK RELEASE INSTALLATION

#### **CONNECT QUICK RELEASE**

STEP 1: The marks on the top part and bottom part must be aligned. The button on the ring should be aligned with the unlocked icon as shown in the first picture.

STEP 2: Keep everything aligned and attach the bottom part to the top part.

STEP 3: Rotate the ring clockwise until the button on the ring aligns with the locked icon.

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2FoiO0O1f6YKKQFEm2HlPO%2Fimage.png?alt=media&#x26;token=113f67b8-c05f-44cd-bc00-2f9555c85af3" alt=""><figcaption></figcaption></figure>

#### **DISCONNECT QUICK RELEASE**

STEP 1: Press and hold the button, and rotate the ring counterclockwise.

STEP 2: When the button on the ring is aligned with the unlock icon, the ORUS L can be detached from the top part of the Quick Release.

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2F2Hi2UtZVUgxFSq8hbSBW%2Fimage.png?alt=media&#x26;token=50a34406-e830-4bdc-bccb-a8baccffc01d" alt=""><figcaption></figcaption></figure>
