ADVANCED DAMPING FOR DJI M300/M350

Advanced Damping is designed to support Pixy SM/Pixy MR in use with the M300/M350 for industrial applications, including mapping & inspection.

APPLY FOR

  • PIXY SM with all Lenses

  • PIXY SM - LR1 KIT all Lense

  • PIXY MR Lens 55mm (SEL55F18Z)

Lens 55mm (SEL55F18Z) is required Gremsy Advanced Damping for the best performance.

Damping Assembly

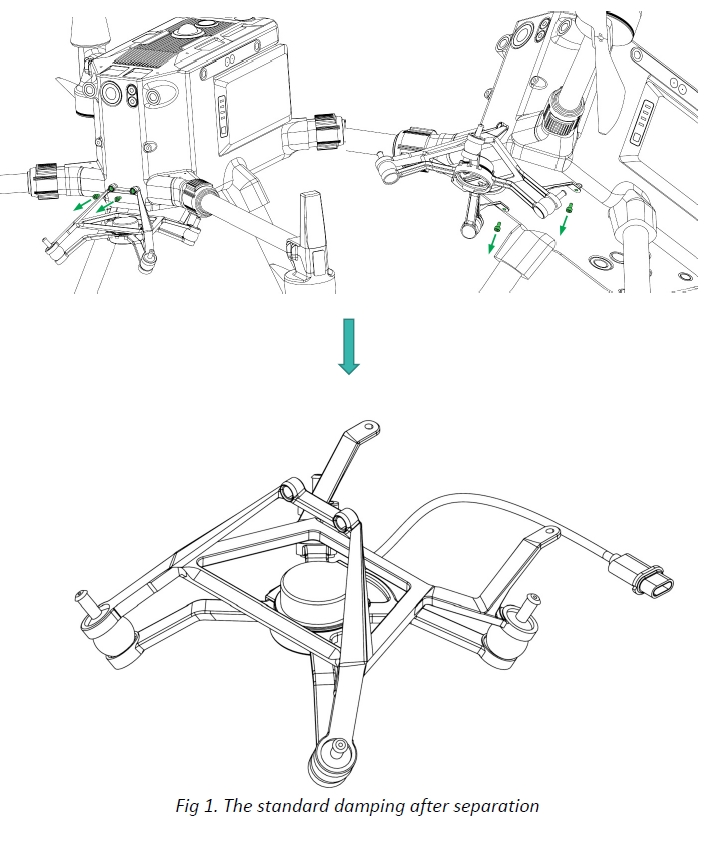

Remove the drone's front and bottom screws.

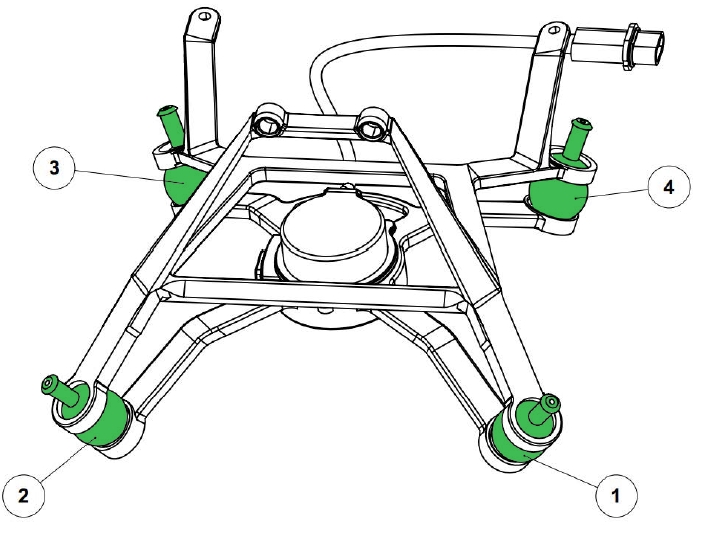

Take out (4) rubber dampers

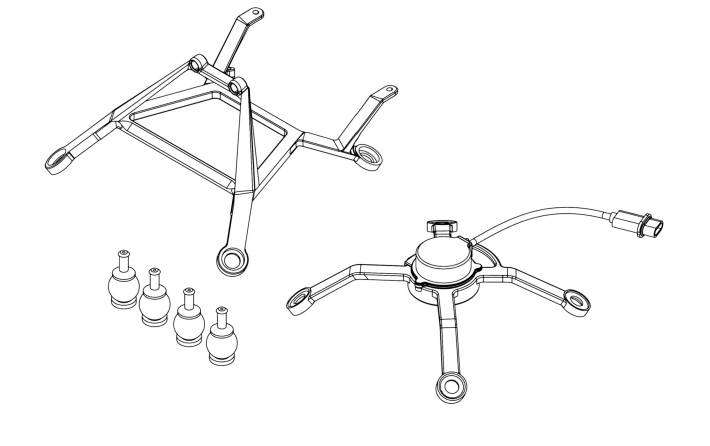

Remove the small plate behind the damping

Pass the cable through the vacant space:

Re-install the plate with (2) screws:

Connect them and place (4) washers:

Place and tighten (4) screws

Place and tighten (2) screws in front and in the bottom of the drone.

Plug the cable into the drone

For the best performance, always rebalance the gimbal after changing lenses.
