# M600 (A3 + LIGHBRIDGE 2)

### **Q 1:** Does Pixy U support M600 or A3 + Lighbridge 2 control?

* Pixy U supports control through M600 or any drone frame using A3 FC and Lightbridge 2.

### **Q 2:** Which kind of operator does Pixy U support?

* Pixy U supports both single and dual operators (slave and master).

### **Q 3:** How to configure Gremsy gimbal to use with DJI Lightbridge 2 or M600’s remote?

* **Step 1: Install the lasted Software/Firmware**

The firmware and software were updated at Download.<br>

* **Step 2: Connect Gremsy gimbal to GPS of Flight controller A3/N3**<br>
* **Step 3: Select Single or Dual Mode**

**At Single Mode, in software:**

&#x20;**-** Go to Setting -> Controls -> LightBridge 2 -> Single\
\- Move GIMBAL DIAL on the remote to turn on the motors.\
\- Toggle C1 to control tilt or pan (make sure Tilt in TILT LOCK , go to **SETTINGS -> FOLLOW-TILT->TILT LOCK**).\
\- Pan will be in follow mode if not use GIMBAL DIAL for PAN control.

\

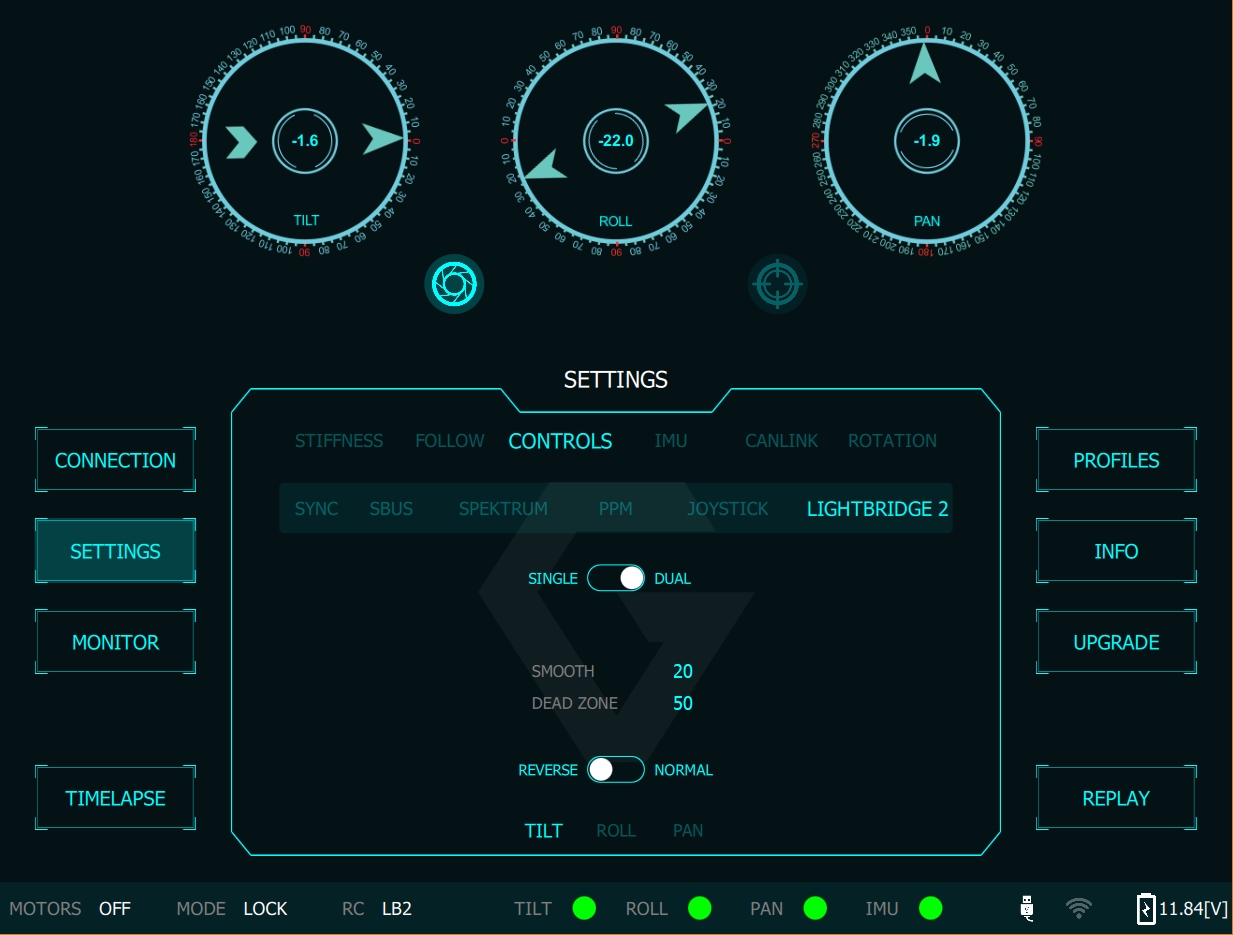

**At Dual Mode, in software:**

![](https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2FKntt75e1ToycKwRj8zTf%2Fsingle.png?alt=media\&token=70b9c307-3ac6-46b0-9e9a-35984724ac32)

\- Go to Setting -> Controls -> LightBridge 2 -> Dual\
\
\- Move GIMBAL DIAL on the remote to turn on the motors.\
\
\- Use Tilt/roll/pan stick to control tilt/roll/pan.

<div align="left"><img src="https://gremsy.com/Data/Sites/1/media/1-new/dual.png" alt=""></div>
