Using 4xM2.5 to mount the top part onto the frame or damping isolator.
Pay attention to the arrow on the hyper quick release which indicates the home position or forward position of the gimbal.
Connect the UBEC cable to the Hyper Quick Release
Connect

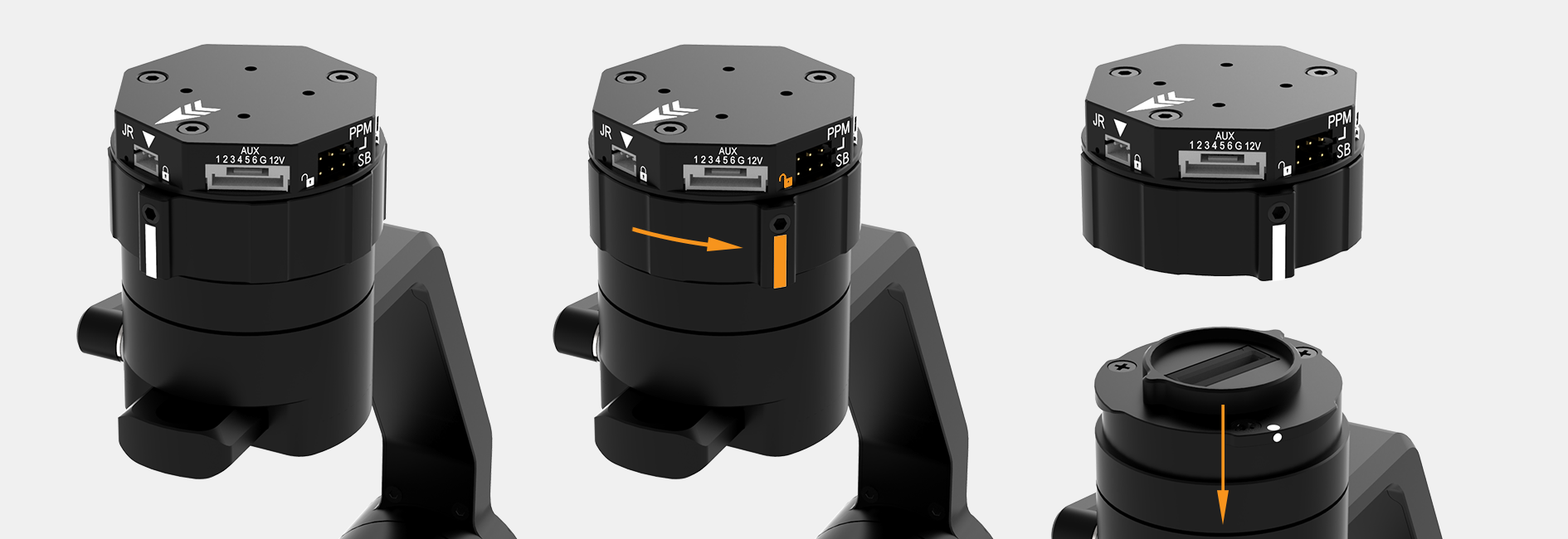

STEP 1: The marks on the top part and bottom part must be aligned. The mark on the ring should be aligned with the unlocked icon as shown in the first picture.

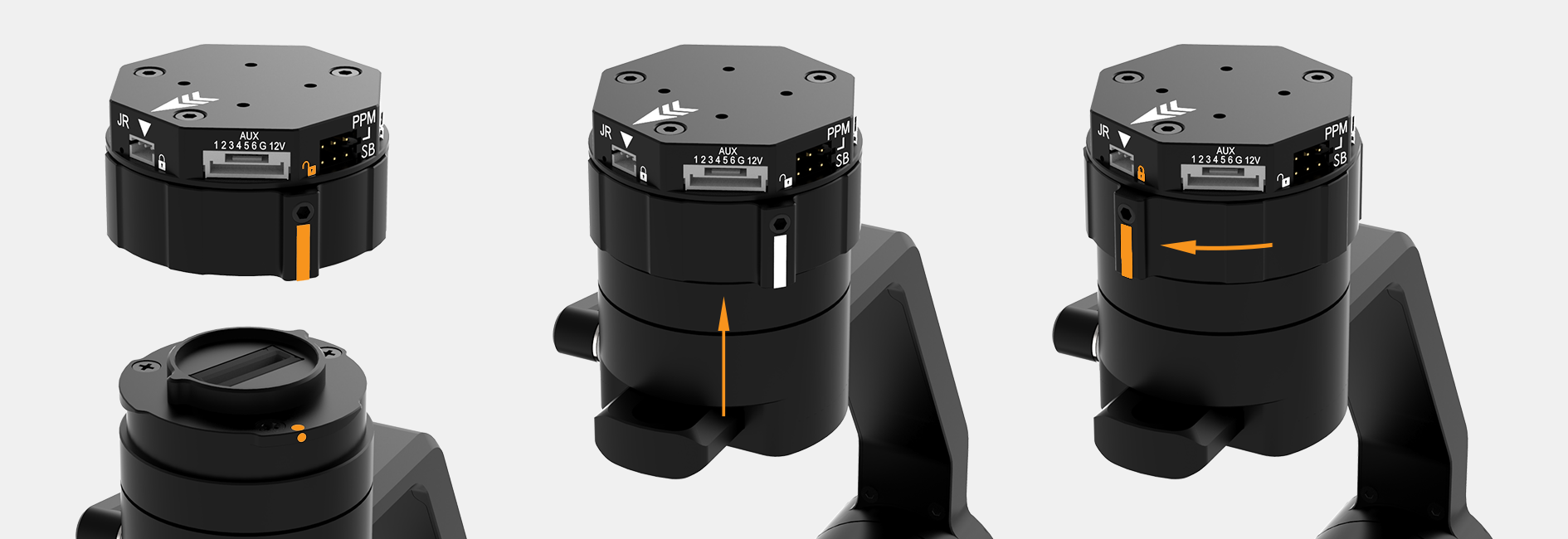

STEP 2: Keep everything aligned and attach the bottom part to the top part.
STEP 3: Rotate the ring clockwise until the mark on the ring aligned with the locked icon.
Disconnect
STEP 1: Rotate the ring counterclockwise.
STEP 2: When the mark on the ring aligned with the unlock icon, the PIXY U can be detached from the top part of the Hyper Quick Release.
