# GENERAL

## Introduce Pixy U

The **Pixy U** is a compact, lightweight, and highly versatile 3-axis stabilized gimbal engineered for professional UAV operations. Designed to support a wide range of multi-camera setups, Pixy U delivers precise stabilization, flexible integration, and autonomous mission capability while maintaining an exceptionally low system weight.

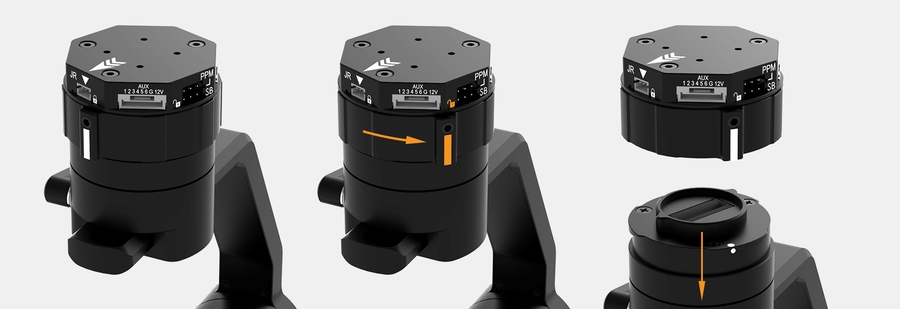

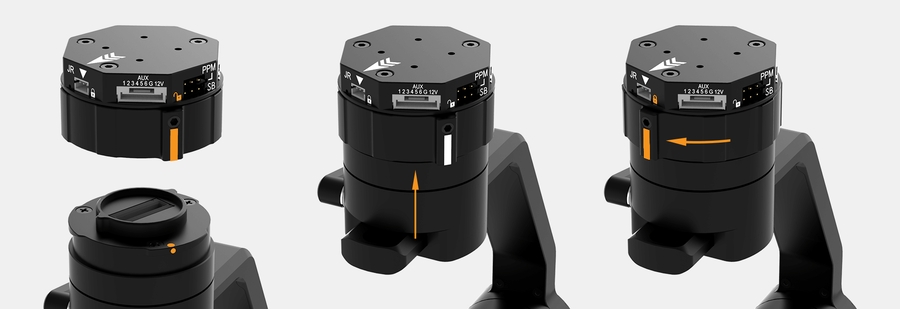

PIXY U is a universal 3-axis gimbal that can handle a wide variety of cameras, [features Hyper quick release](/accessories/quick-release/hdmi-hyper-quick-release.md) with integrated HDMI, a variety of I/O interfaces and the ability to start up in 2 seconds.

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2F7VwQHqZGDyGRyt75fdLm%2Fimage.png?alt=media&amp;token=139f7d27-a6f4-4fa2-b94b-e6a7cc1fca92" alt=""><figcaption></figcaption></figure>

## What's in the Box?

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2Fh4HdYcXEDmeAt9gcUDz9%2Fimage.png?alt=media&amp;token=6ad876f2-4011-483d-9918-09ecea44aade" alt=""><figcaption></figcaption></figure>

<table data-header-hidden="false" data-header-sticky><thead><tr><th>PIXY U</th><th>x1</th></tr></thead><tbody><tr><td>PIXY Quick Release</td><td>x1</td></tr><tr><td>Micro USB Cable</td><td>x1</td></tr><tr><td>Pixy - Standar Auxiliary Cable 8-PIN</td><td>x1</td></tr><tr><td>Sbus Cable</td><td>x1</td></tr><tr><td>Bluetooth Module</td><td> x1</td></tr><tr><td>Pixy - Cable For Pixhawk</td><td>x1</td></tr><tr><td>Pixy - UBEC</td><td>x1</td></tr><tr><td>Bolt Hexagon Socket M2.5x5</td><td>x8</td></tr><tr><td>Camera Bolt 1/4"-20</td><td>x2</td></tr><tr><td>Allenkey 2.mm</td><td>x1</td></tr><tr><td>Camera plate standard</td><td>x1</td></tr></tbody></table>

## Dimension and Camera Cage

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2FhLWpG6qf9YqfdX6c9Hzo%2Fimage.png?alt=media&amp;token=cb3d42cc-55e1-4333-adb0-11ddeaf7c356" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2F9kDF3t8jezvGNsibO3bl%2Fimage.png?alt=media&amp;token=3ba33259-9a47-457d-a7ae-276790fd61e4" alt=""><figcaption></figcaption></figure>

## Operation Modes

* Motor ON / OFF control
* Lock Mode (fixed attitude stabilization)
* Follow Mode / Mapping Mode (smooth yaw/pitch tracking)
* Inverted Mode (for downward or unconventional mounting configurations)

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2FwOaWVC3yFpQoZS0ZHKkL%2Fimage.png?alt=media&amp;token=b299ea0a-9bfc-4a9b-b429-f3f86adb48ac" alt=""><figcaption></figcaption></figure>

## Core Functional Features

* Integrated temperature sensor for thermal monitoring and protection
* Gremsy high-precision brushless motors with built-in encoders
* Micro USB interface for configuration and debugging
* 32-bit high-performance ARM microcontroller
* Compatible with S-Bus / Spektrum / PPM receiver systems

## Mechanical & Electrical Characteristics

### &#x20;Electrical Specification

* Input Power: **14 – 52 VDC (including UBEC)**
* Operating Voltage: **12 V**
* Static Current: **400 mA @ 12 V**
* Dynamic Current: **800 mA @ 12 V**
* Locked Motor Current: **Max 4.0 A @ 12 V**

### Environmental Conditions

* Operating Temperature: **0°C to 50°C**

### &#x20;Mechanical Properties

* Total Weight: **0.465 kg (1 lb)**
* Dimensions (Gimbal Body): **112 × 145 × 200 mm (W × D × H)**

### Payload Interface (Camera Tray)

* Maximum depth from center of gravity (camera base plate): **65.5 mm**
* Maximum height above base plate: **70 mm**
* Maximum width: **100 mm**

This mechanical envelope supports a wide range of compact EO, thermal, and multispectral camera systems.

## Performance Specification

### Stabilization Performance

* Angular Vibration Accuracy: **±0.02°**

### Rotation Speed

* Pan Axis: up to **100°/s**
* Tilt Axis: up to **100°/s**
* Roll Axis: up to **100°/s**

### Motion Range

**Mechanical Endpoint Range**

* Pan: **±330°**
* Tilt: **+135° to -45°**
* Roll: **+45° to -90°**

**Controlled Operation Range**

* Pan: **±330°**
* Tilt: **+135° to -45°**
* Roll: **±45°**


---
