SETUP WITH MAVLINK PASSTHROUGH

Version: 1.0.0 Date Update: 27/3/2026 Version Camera: 2.01 Version Gimbal: 7.8.7 Version Entire: 1.989

Entire Airpixel configuration

Configure the Uni port-C of the Entire module as shown below according to the steps:

Step 1: Connect the device to Entire's wifi.

Step 2: Open any browser and access the following IP address: 192.168.10.1

Step 3: After successful access, the interface will appear as shown below.

Step 4: Change the function of the Uni port-C to Mavlink Passthrough with Baudrate 115200

Note: Check the remaining UNI ports to see if they are online. UNI ports can be turned offline during the configuration process.

Checking Mavlink passthrough control

Check notifications

On RC Herelink -> Notifications -> Info line

Check the gimbal recognition information and firmware version.

Check the gimbal angle

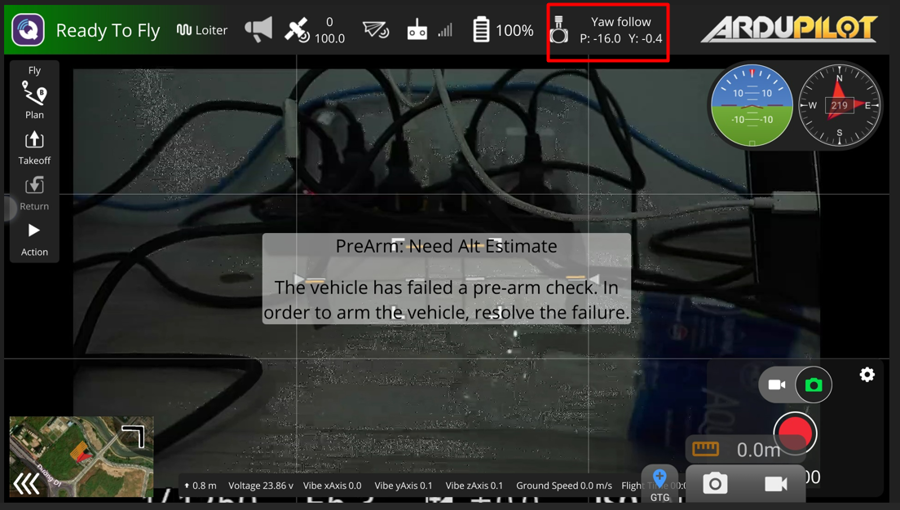

Check the top right corner of the RC Herelink to see if there are any gimbal angle specifications.

Turn on Control gimbal on Screen to test the control.
