CAMERA CONFIGURATION

USB configuration for EXIF geotagging

STEP 1

Open camera MENU and navigate to: SETUP->USB->USB Connection Mode->MassStorage

STEP 2

Open camera MENU and navigate to: NETWORK->Cnct./PC Remote->PC Remote Function->OFF

STEP 3

• Connect the device to Entire's wifi.

• Open any browser and access the following IP address: 192.168.10.1

• Enable GeoTagging via ENTIRE MENU->Logging mode-> Direct EXIF (or SD card)

WiFi configuration for control

STEP 1

ENTIRE needs to be set to “USB Control” mode and updated to the latest firmware to have this procedure working.

STEP 2

• Open camera MENU and navigate to NETWORK->Network Option->Access Authen. Settings

• Open this item and in submenu DISABLE authentication

• Confirm all warnings OK

• Access Authen. Settings should be OFF

STEP 3

• Navigate to: NETWORK->Wi-Fi->Access Point Set

• And enter item

• Wait for scan of available access points

STEP 4

From the list of networks select Accesspoint of the ENTIRE Entire_xxxx Confirm OK

STEP 5

• Camera will connect the ENTIRE via WiFi now

• Once done, confirm OK for return to the list

STEP 6

Click right (MANUAL SETTINGS) on the ENTIRE’s WiFi item to enter manual IP settings

Scroll to IP Address settings “Auto” and change to “Manual”

STEP 7

• Fill IP addresses and masks:

192.168.122.1 255.255.0.0 192.168.10.1

• Confirm OK

• Camera will now re-connect the ENTIRE

STEP 8

Once connection is done, scroll up to “Wi-Fi Connect” and turn it ON

STEP 9

Navigate to: NETWORK->Cnct./PC Remote->PC Remote Function->ON

STEP 10

• Now scroll to Connect without pairing and enter item

• Configure to ENABLE

• Confirm

• Pairing will no longer be necessary.

STEP 11

• Capture destination of images needs to be set to be fixed SD card.

• Navigate to: NETWORK->Cnct./PC Remote->Remote Shoot Setting->Still Img. Save. Dest.

• Configure item to “Camera Only” and confirm

STEP 12

Make sure your camera is set to M exposure mode, or A/S exposure mode. Camera is by default set to Inteligent exposure mode, where Iris / Speed are calculated automatically and can not be changed by user / remotely.

STEP 13 - GEOTAGGING TEST

• Your setup is ready to be used for Geotagging at this point

• ENTIRE has Self-Test routines for Geotagging to easily check if all wiring is working well

• Make sure that all equipment is turned ON and camera is set to MASS STORAGE MODE

• At the beginning of the test, one photo will be triggered

• Entire will check if Hotshoe sensor has properly recognized trigger

• Entire will check all necessary input data connections

• In case of any problems, result will provide hints to solve the issue

• Test photo will not be geotagged in the test method

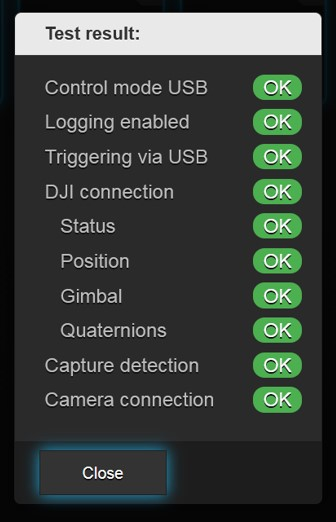

  Click to MENU->Configuration test and let the Entire to do a self-test

WARNING!

Remember to turn the camera OFF by power off switch! DO NOT DISCONNECT POWER otherwise all settings will be lost and you will have to start over!
