# M600/M600 PRO

### **Q 1:** Does Mio support M600 or A3 + Lighbridge 2 control?

* Mio supports control through M600 or any drone frame using A3 FC and Lightbridge 2.

### **Q 2:** Which kind of operator does Mio support?

* Mio supports both of single and dual operator (slave and master).

### **Q 3:** How to configure Gremsy gimbal to use with DJI Lightbridge 2 or M600's remote?

* Step 1: Install the lasted Software/Firmware

The firmware and software were updated at Download.<br>

* Step 2: Connect Gremsy gimbal to GPS of Flight controller A3/N3<br>
* Step 3: Select Single or Dual Mode

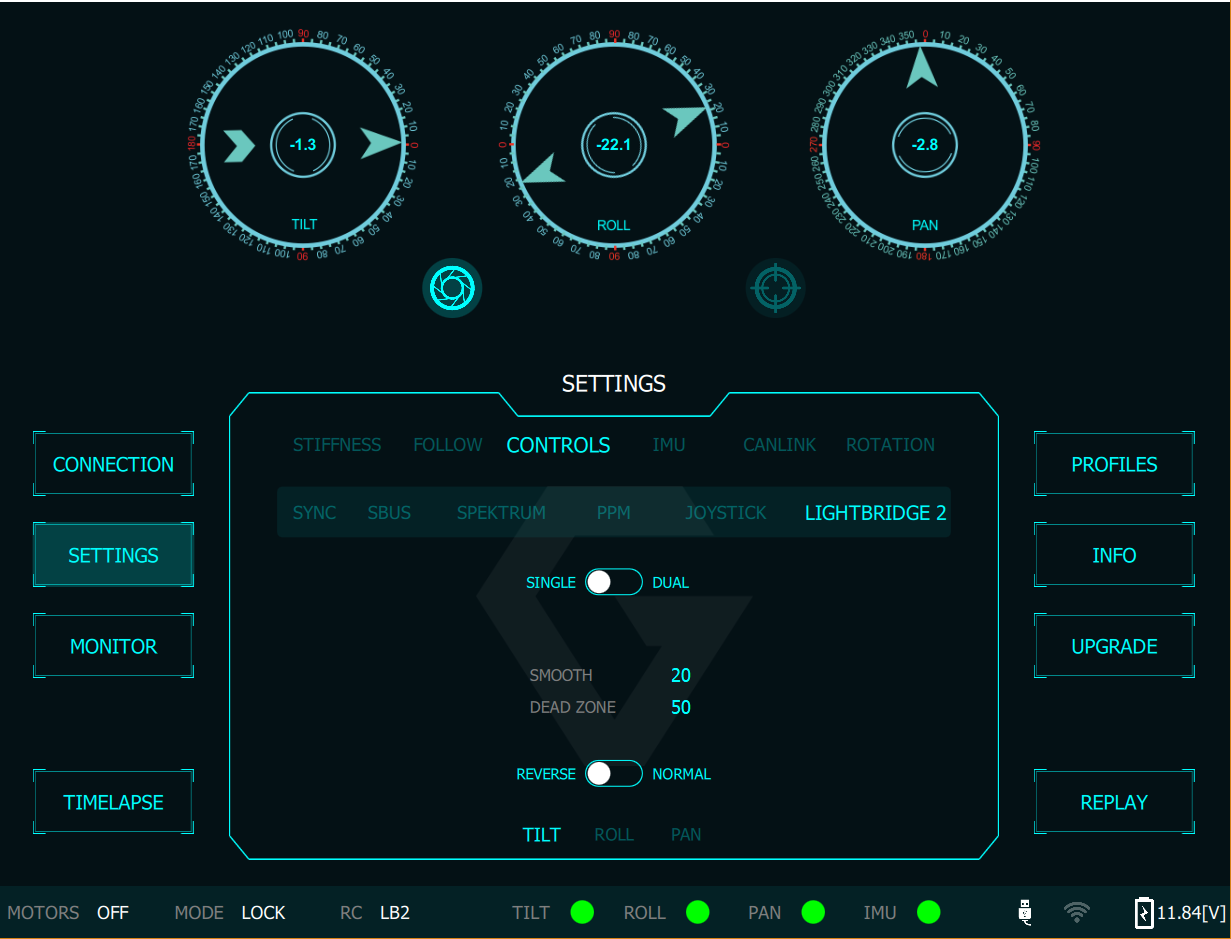

At Single Mode, in software:

&#x20;\- Go to Setting -> Controls -> LightBridge 2 -> Single\
\- Move GIMBAL DIAL on the remote to turn on the motors.\
\- Toggle C1 to control tilt or pan (make sure Tilt in TILT LOCK , go to SETTINGS -> FOLLOW-TILT->TILT LOCK).\
\- Pan will be in follow mode if not use GIMBAL DIAL for PAN control.\
At Dual Mode, in software:

<figure><img src="https://gremsy.com/Data/Sites/1/media/1-new/single.png" alt=""><figcaption></figcaption></figure>

\- Go to Setting -> Controls -> LightBridge 2 -> Dual\
\
\- Move GIMBAL DIAL on the remote to turn on the motors.\
\
\- Use Tilt/roll/pan stick to control tilt/roll/pan.

![](https://gremsy.com/Data/Sites/1/media/1-new/dual.png)

Instruction Steps: updating\
Video: updating
