# GIMBAL MODE

Switching Between Modes

### Using function button

| PRESS TIMES    | MODES               |
| -------------- | ------------------- |
| Once time      | Turn motors ON      |
| 2 times        | Lock mode           |
| 3 times        | Follow/Mapping mode |
| Hold 3 seconds | Turn motor OFF      |

### Using the mode channel on the remote control

| POSITIONS | MODES                          |      |                    |
| --------- | ------------------------------ | ---- | ------------------ |
| High      | <p>Adjustable <br>Motor ON/OFF | LOCK | FOLLOW/MAPPING</p> |
| Midle     | <p>Adjustable <br>Motor ON/OFF | LOCK | FOLLOW/MAPPING</p> |
| Low       | <p>Adjustable <br>Motor ON/OFF | LOCK | FOLLOW/MAPPING</p> |

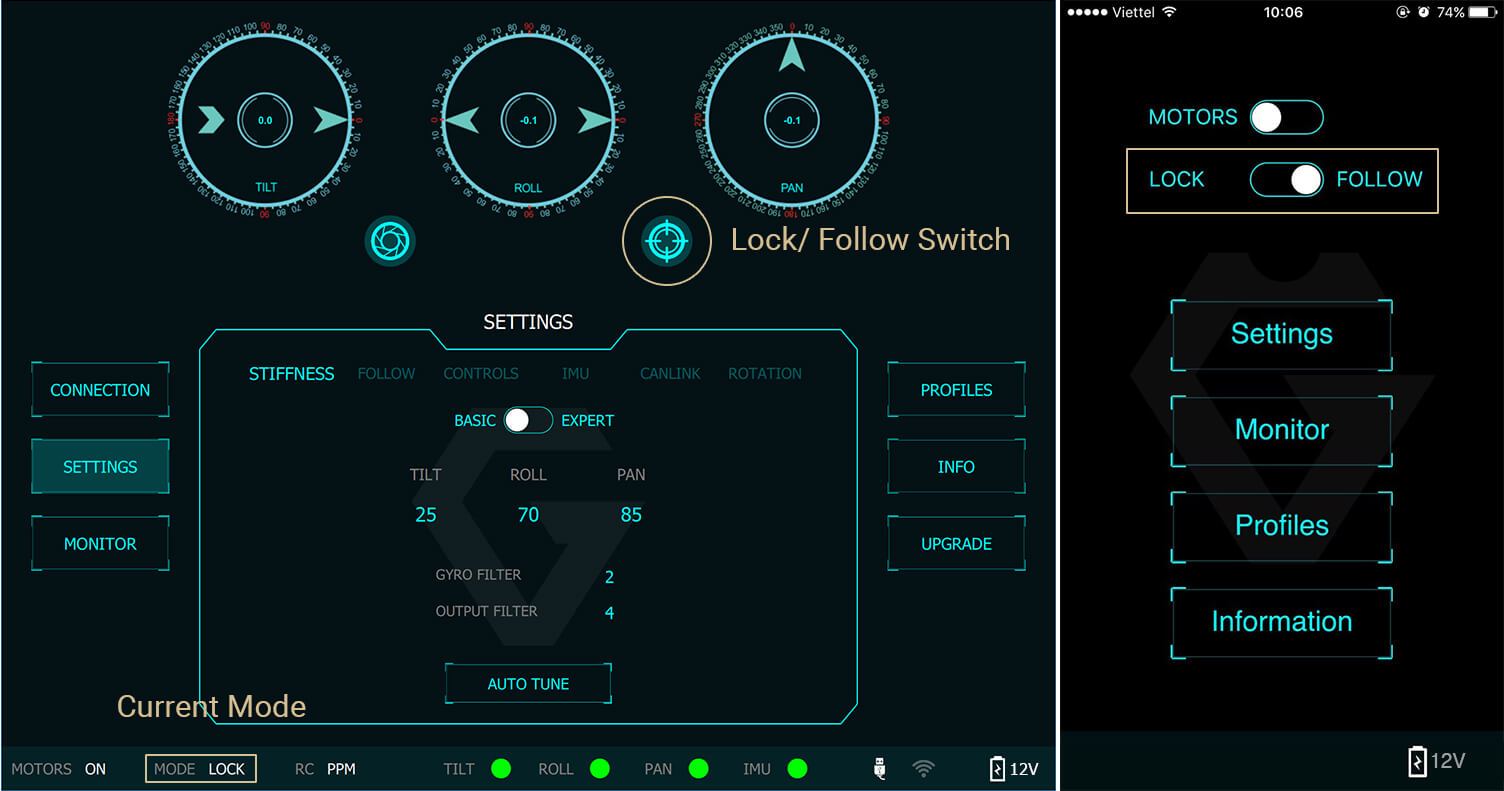

### Using software/application

<figure><img src="https://gremsy.com/Data/Sites/1/media/manual/t7/27.jpg" alt=""><figcaption></figcaption></figure>

**NOTE:** If there is a remote control signal, changing modes or turning motors on/ off by other methods such as using the function button or software will not take effect because the remote control signal has the highest priority and override the command.


---
