# JR/SPEKTRUM SETTINGS

## JR / SPEKTRUM SATELLITE RECEIVER CONNECTION

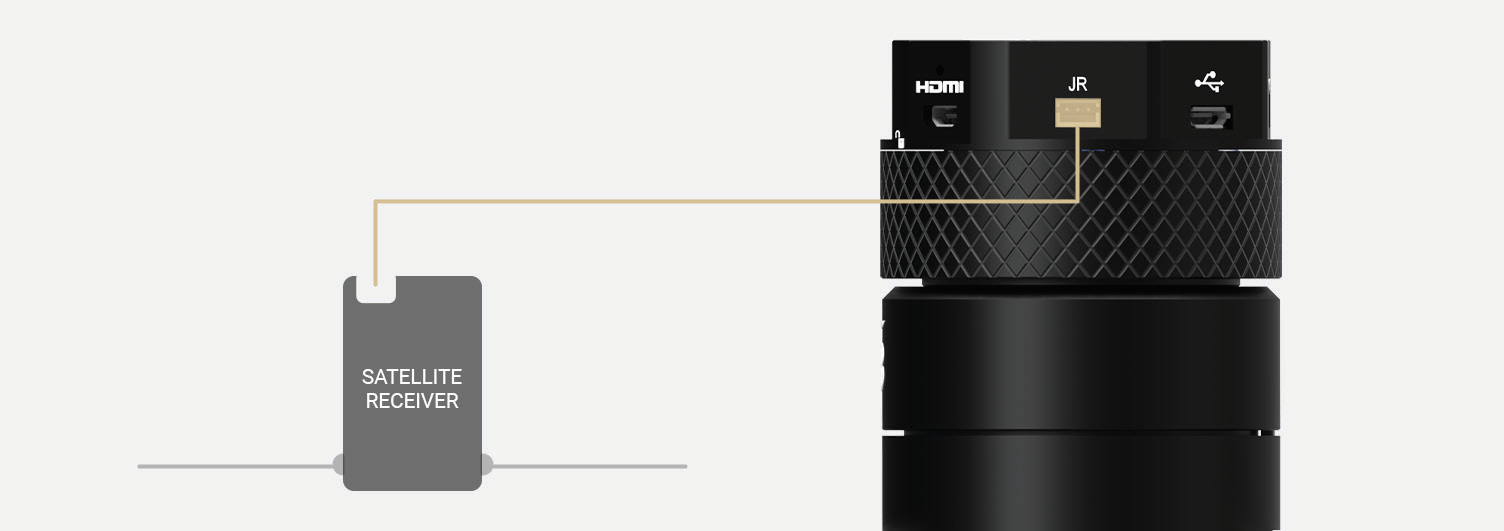

Connect satellite receiver to the JR port on the Hyper quick release as shown in
\
the picture. Make sure satellite receiver is already bound to the transmitter (RED
\
led is solid).

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2FsdGlqj3vMQVAjPHN46GA%2Fimage.png?alt=media&#x26;token=b7ddd266-57f2-4f4c-b4b1-bbaab4c95b25" alt=""><figcaption></figcaption></figure>

## CHANNEL SETTINGS

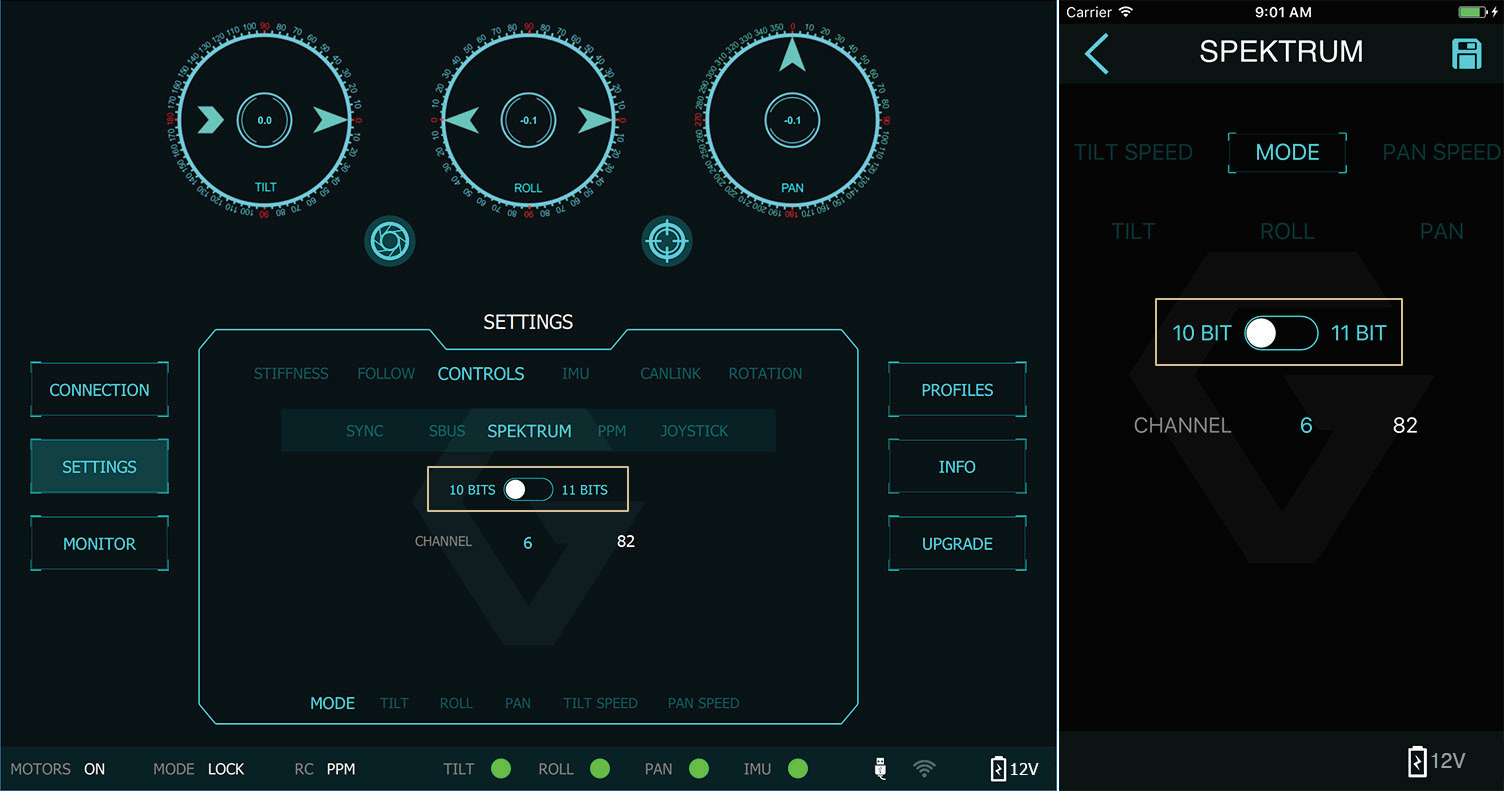

Choose 10 bit or 11 bit type resolution on the software and assign proper
channels as per SBUS settings.

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2FNQRKtRLMP1TT9rOXhTgd%2Fimage.png?alt=media&#x26;token=ea27fc48-3d07-4d5e-bb8f-f36f29d4030b" alt=""><figcaption></figcaption></figure>
