# UPGRADING FIRMWARE

Aevo

## How To Upgrade

### **Step 1: Install the USB driver**

Make sure you installed the Driver for USB before continuing to the next steps.

[![](https://gremsy.com/Data/Sites/1/media/support/icon-window.png)](https://gremsy.com/support/product-support/pixy-mio/pixy-u/'https://www.silabs.com/documents/public/software/CP210x_Universal_Windows_Driver.zip) [Windows 10](https://www.silabs.com/documents/public/software/CP210x_VCP_Windows.zip)

[![](https://gremsy.com/Data/Sites/1/media/support/icon-mac.png)](https://www.silabs.com/documents/public/software/Mac_OSX_VCP_Driver.zip)[macOS (10.9 or later)](https://www.silabs.com/documents/public/software/Mac_OSX_VCP_Driver.zip)

### **Step 2:** Before the upgrade

1. Download the latest Software version for MAC or Windows if not installed yet.
2. Install USB Driver if not installed yet.
3. Download the Firmware in Zip format.
4. Unzip to get the \*.hex file.
5. Unplug the Remote Receiver (SBUS, JR, …) if it was plugged into the gStabi system.
6. Connect Gimbal to your Mac or PC by USB cable.

### **Step 3: Upgrade firmware**

1. Power on the gimbal.
2. Connect the USB cable from the gimbal USB-C port to Mac/PC.
3. Run the gTune Desktop software.
4. In the software, select “Serial” option on “Connection” tab.
5. Select the port in the list.
6. Click on the “Connect” button.

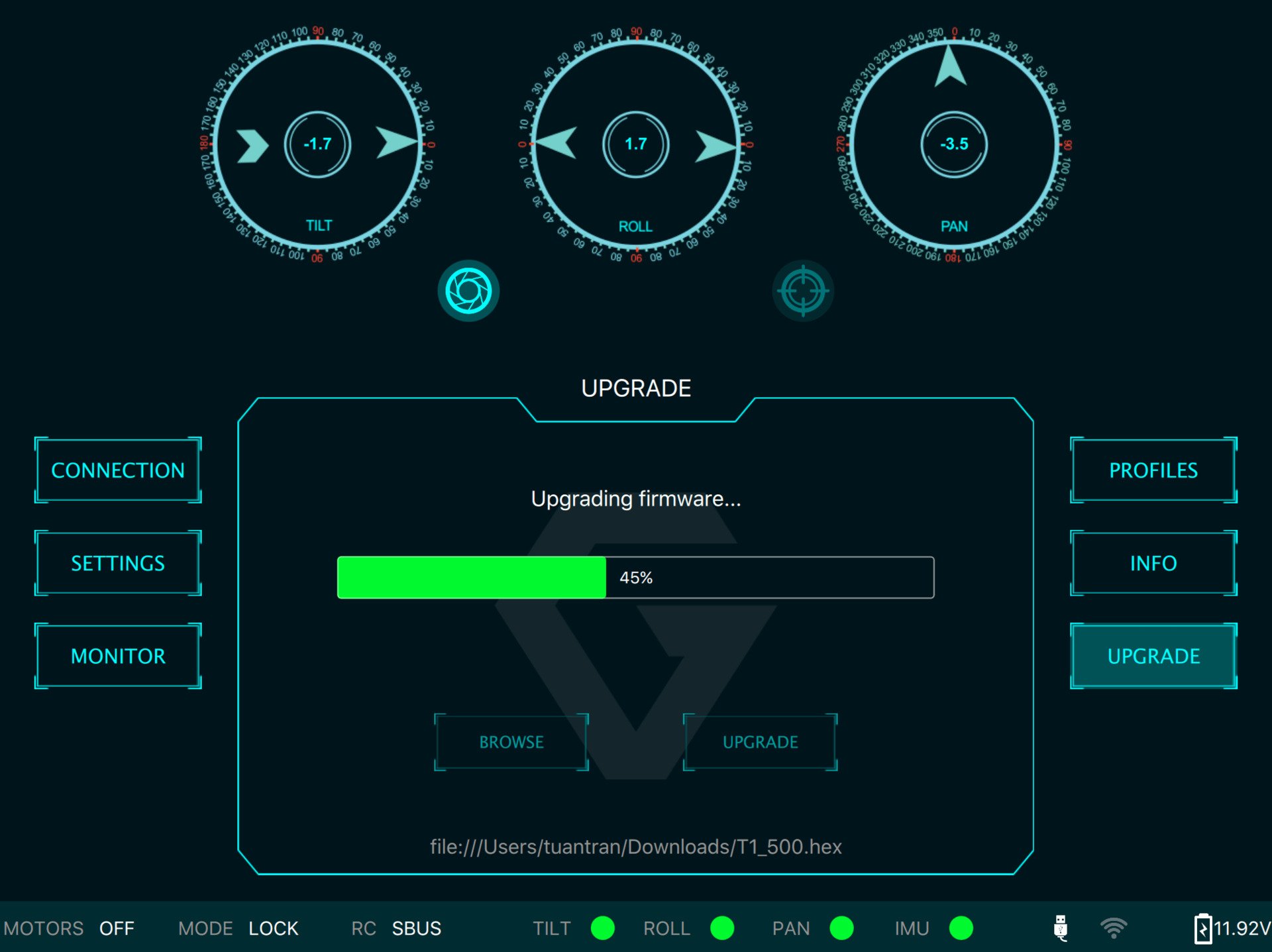

7. Go to “Upgrade” tab.
8. “Browse” to firmware file from your computer.
9. Make sure the RF receiver (if available) is already removed.
10. Click “Upgrade” button. The process will take about 2 minutes. When the firmware is upgraded successfully, the gimbal will be restarted automatically.

### **Note**

#### During upgrade:

* Power on Gimbal.
* Run the software and select Upgrade.
* Follow the Steps on the screen.

#### Troubleshooting

If you have failed during the firmware upgrade, please follow [this article](https://support.gremsy.com/support/solutions/articles/36000015190-how-to-upgrade-downgrade-gremsy-gimbal-firmware-) to configure it again\
You can also contact our support via <support@gremsy.com> for prompt support

<figure><img src="https://gremsy.com/Data/Sites/1/media/manual/t7/52.jpg" alt=""><figcaption></figcaption></figure>


---
