# I/O Connection

Pixy SM

## GIMBAL CONNECTION

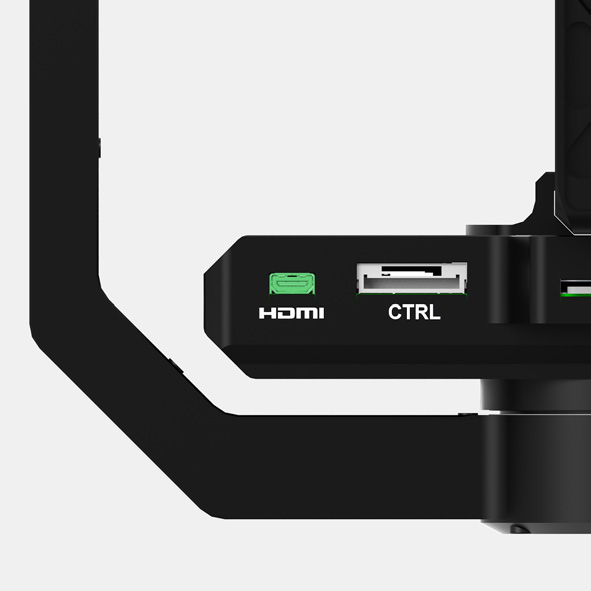

### **HDMI:**

To output video from the camera.

**Connector type:** micro HDMI.

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2FJTbaiEmgoVMgn5JCPfsD%2Fimage.png?alt=media&amp;token=db519c52-6ed7-4f87-9b92-71b912f0719b" alt="" width="296"><figcaption></figcaption></figure>

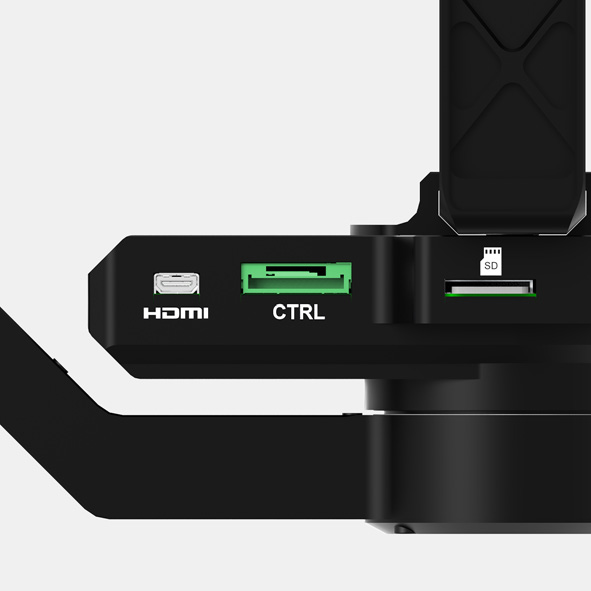

### **CTRL:**&#x20;

CTRL is a serial protocol (UART) port which is used to interface with Sony A7R IV via USB C port.&#x20;

**Connector type:** JST SM10B-GHS-TB(LF) (SN).

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2FpPcxs2MGBAbNAhA343C8%2Fimage.png?alt=media&amp;token=c2f50533-1dd2-48fd-b76a-8eba5de91d36" alt="" width="296"><figcaption></figcaption></figure>

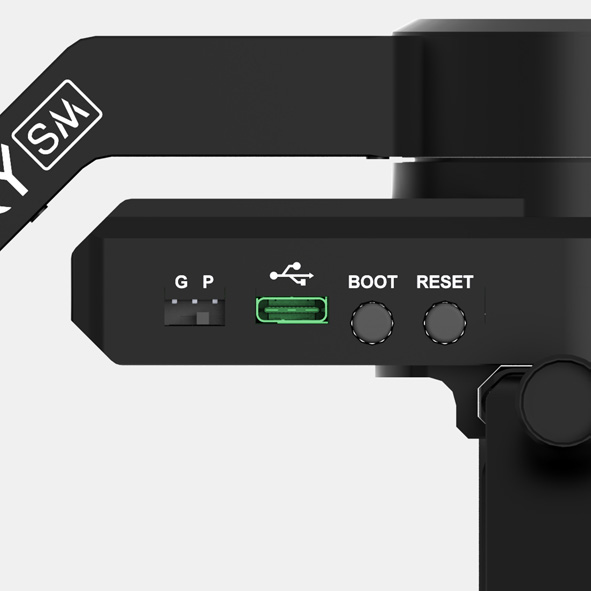

### **USB-C:**

To interface with computer or upgrade firmware.&#x20;

**Connector type:** USC type C.

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2F8ccWbdsxKo1ENgRMjoat%2Fimage.png?alt=media&amp;token=1730ef47-815a-481a-b3aa-d23e7d7a1c2a" alt="" width="296"><figcaption></figcaption></figure>

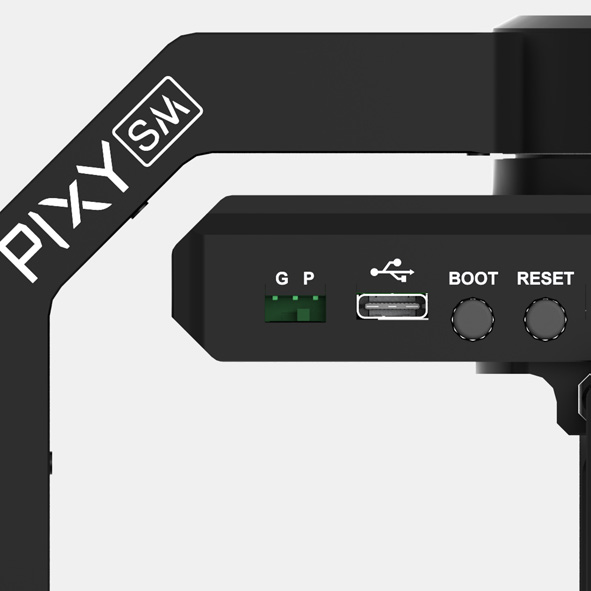

### **Device Switch**:&#x20;

To switch between the gimbal and SOM for firmware upgrading.&#x20;

**Connector type:** 2 level switch.

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2FJHVoWv7FvBCqlQGTpNC2%2Fimage.png?alt=media&amp;token=ce8dcb7f-8c9d-41d3-848e-bdeb61f0d746" alt="" width="296"><figcaption></figcaption></figure>

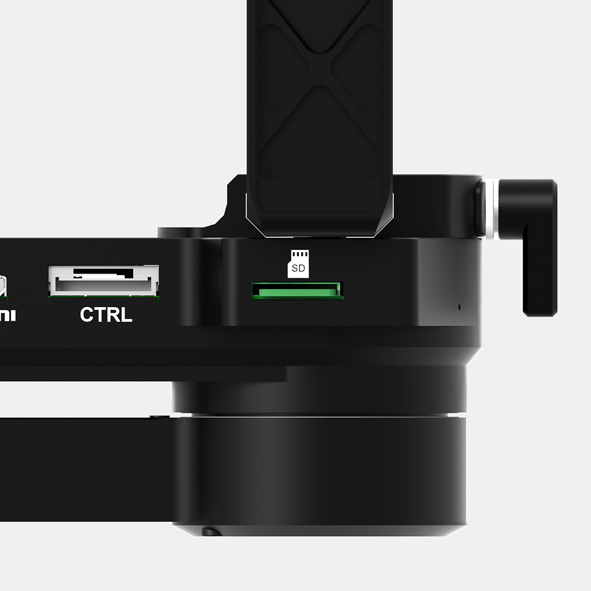

### **Micro SD card:**&#x20;

To insert the micro SD card for Geo data storage.

**Connector type:** Micro SD card.&#x20;

{% hint style="info" %}
Note: Recommend SD Card from 30GB, at least 50MB/s read/write speed
{% endhint %}

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2F0KUTTlte3Sz6ThccPhc2%2Fimage.png?alt=media&amp;token=19098d0e-cc8d-4e3e-aa10-a781a54ad562" alt="" width="296"><figcaption></figcaption></figure>

## GIMBAL BUTTONS

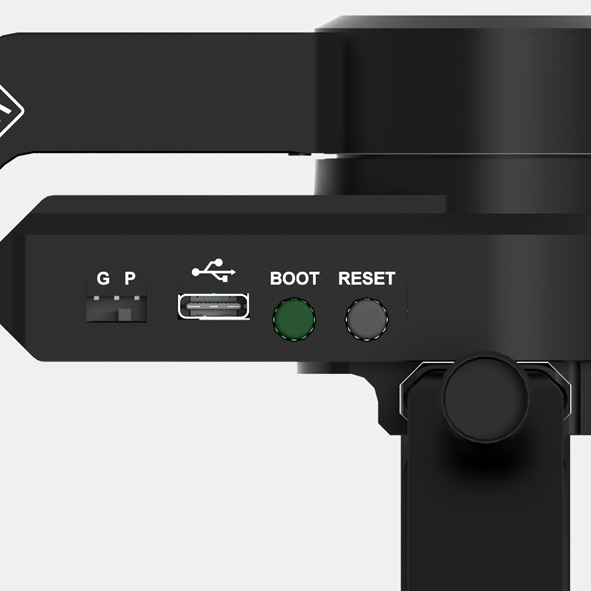

### **Boot:**&#x20;

To push the firmware during upgrading process.

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2FxYZ5a9fGgf3dey6fnJMC%2Fimage.png?alt=media&amp;token=60a0ddf0-07c0-4976-97d6-a207508efd6d" alt="" width="296"><figcaption></figcaption></figure>

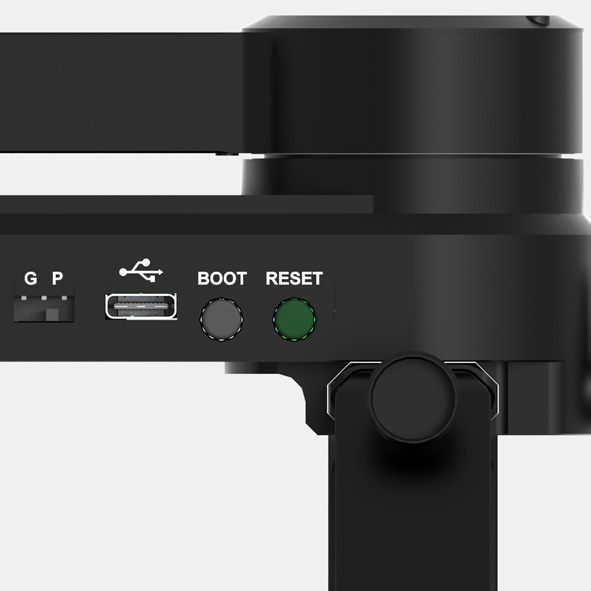

### **Reset:**&#x20;

To reset the system in case needed.

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2Fpx97SWGjOR8ChdFpsWDL%2Fimage.png?alt=media&amp;token=7f49b9df-649c-40f4-a649-a8971cf4e187" alt="" width="296"><figcaption></figcaption></figure>

## QUICK RELEASE CONNECTION

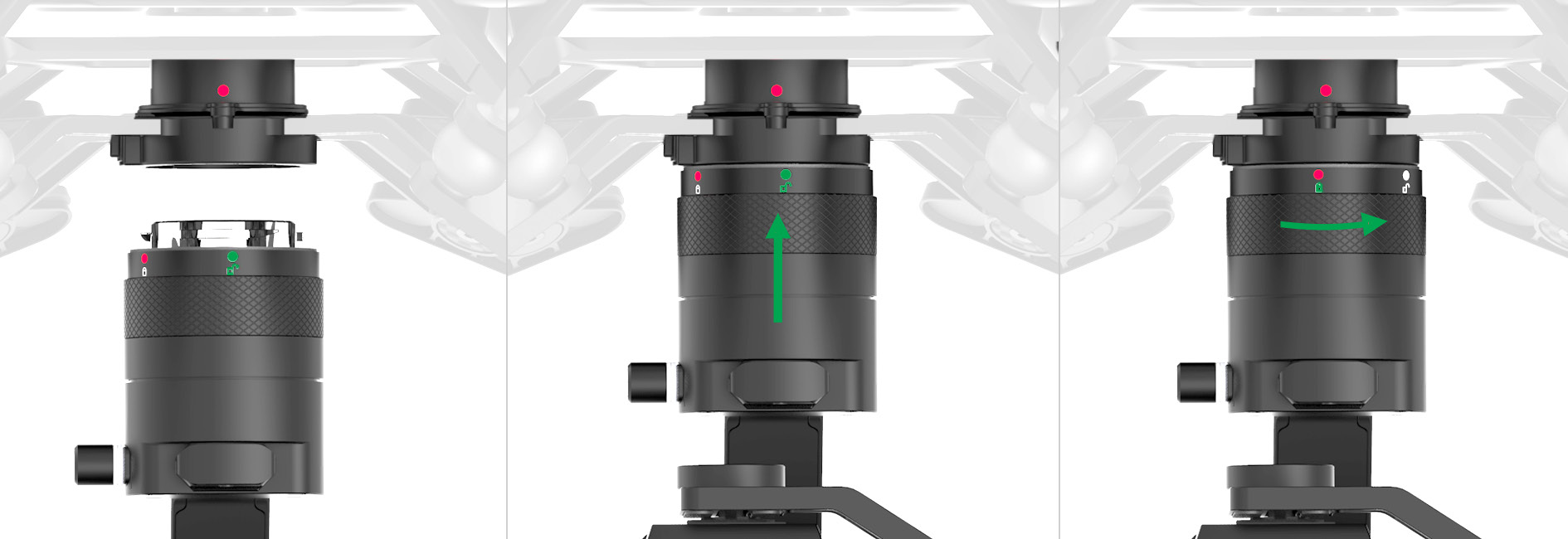

### CONNECT

**STEP 1:** The marks on the top part and bottom part must be aligned.&#x20;

**STEP 2:** Keep everything aligned and attach the bottom part to the top part.&#x20;

**STEP 3:** Rotate the bottom counter-clockwise until the mark on the ring aligned with the locked icon.

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2FMMxT0pjMUtNYFz2xRH7d%2Fimage.png?alt=media&amp;token=0e330e1b-4872-4646-b379-1fd71dc17166" alt=""><figcaption></figcaption></figure>

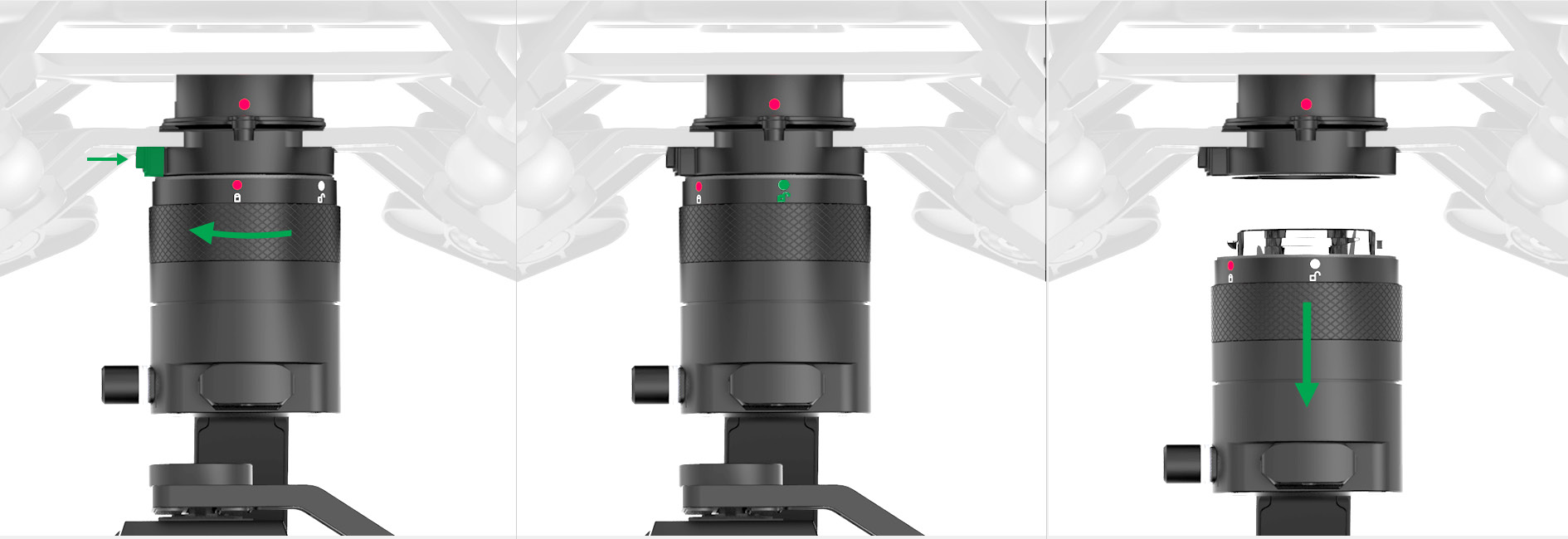

### DISCONNECTION

**STEP 1:** Press & hold the release button.

**STEP 2:** Rotate the bottom clockwise.

**STEP 3:** When the mark on the top aligned with the unlock icon on the bottom, the PIXY SM can be detached from the top part of the Quick Release.

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2FhEvwlf5L5CavdyyITncX%2Fimage.png?alt=media&amp;token=59c7aac1-6482-4494-9c35-278cbd9564ee" alt=""><figcaption></figcaption></figure>


---
