# DAMPING ASSEMBLY GUIDE

PIXY SM

**Components required:**

\- DJI - Standard damping on M300 RTK

\- Gremsy - Damping extension for Pixy SM

**What’s in the box of the damping extension?**

| F Adapter bundle x2 |   |
| ------------------- | - |
| B Adapter bundle x2 |   |

 **ASSEMBLY INSTRUCTIONS**

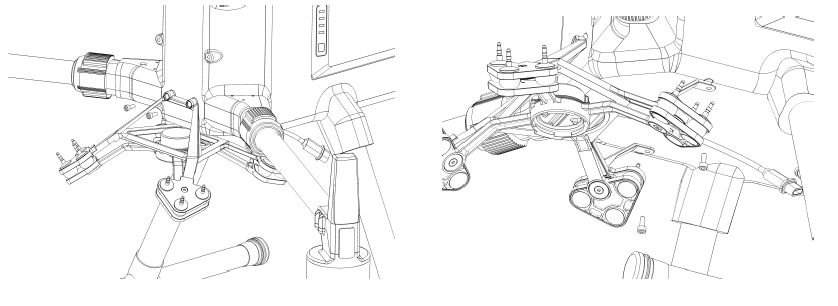

### STEP 1: Separate the standard damping from the M300 RTK.

![](https://gremsy.com/Data/Sites/1/media/support/pixysmdamping/damping01.png)





### STEP 2: Note the marked position of the standard damping as below.

![](https://gremsy.com/Data/Sites/1/media/support/pixysmdamping/damping02.png)



### STEP 3: Remove silicone balls from the standard damping.

![](https://gremsy.com/Data/Sites/1/media/support/pixysmdamping/damping03.png)

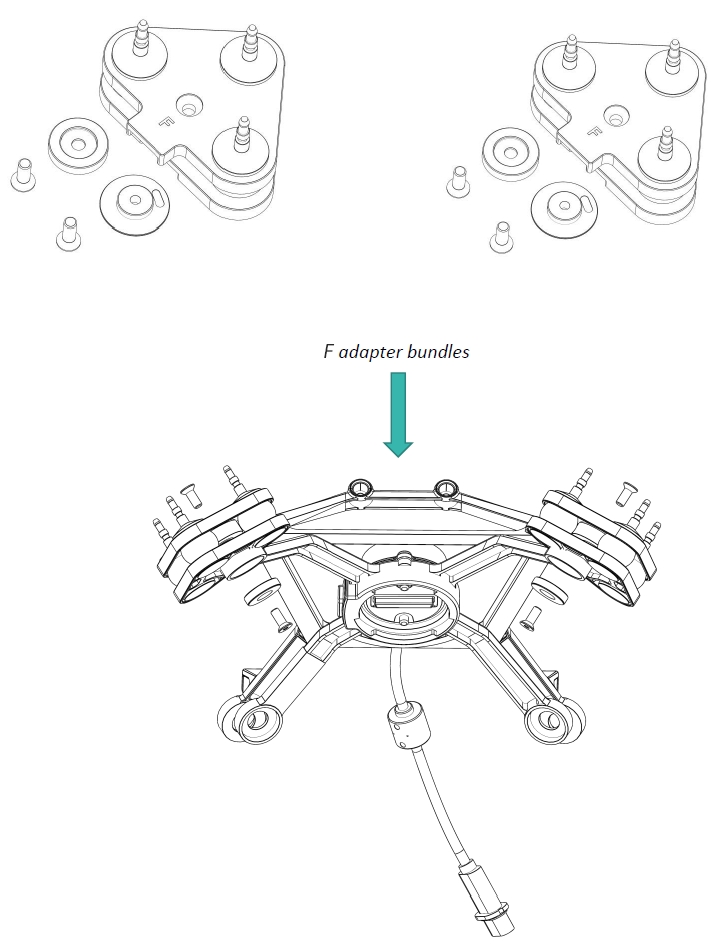

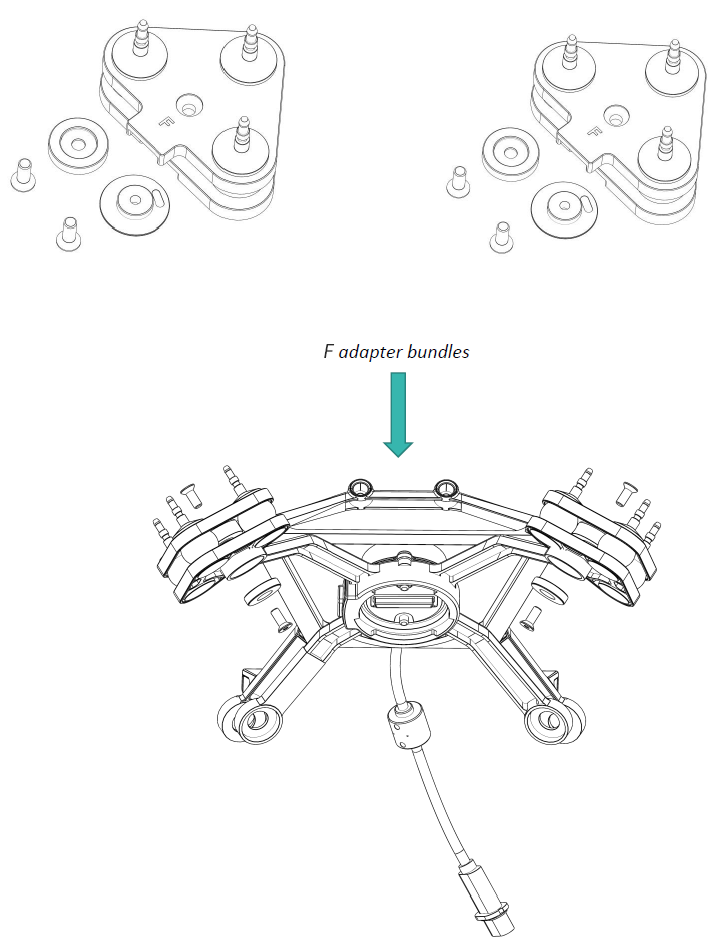

### STEP 4: Assemble the “F adapter bundles” into the “position 1 & 2” as marked in step 2.

![](https://gremsy.com/Data/Sites/1/media/support/pixysmdamping/damping04.png)

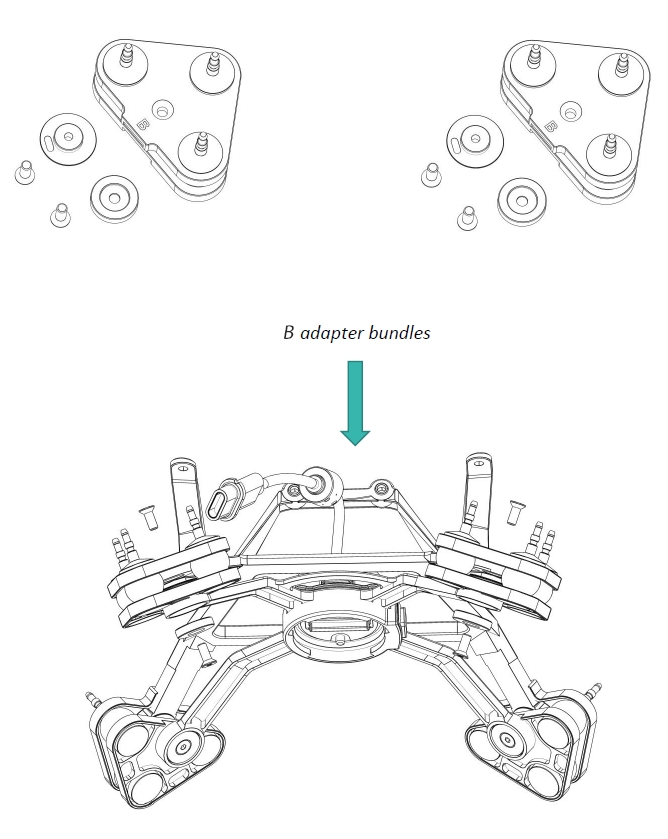

### STEP 5: Assemble the “B adapter bundles” into the “positions 3 & 4” as marked in step 2.



![](https://gremsy.com/Data/Sites/1/media/support/pixysmdamping/damping05.png)

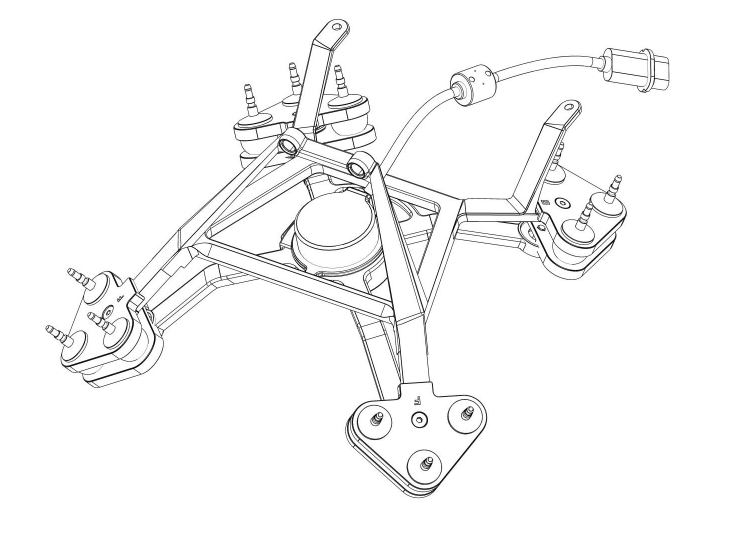

### STEP 6: Complete the damping for Pixy SM.

![](https://gremsy.com/Data/Sites/1/media/support/pixysmdamping/damping06.png)



### **STEP 7: Mount the damping on M300 RTK and ready for use with Pixy SM.**

![](https://gremsy.com/Data/Sites/1/media/support/pixysmdamping/damping07.png)




---
