# ZIO/VIO DAMPING PLATE

ZIO/VIO Damping is designed to match perfectly with the ZIO/VIO payload where 4 silicone-filled rubber balls are used to further remove high-frequency vibration and allow smooth footage. The Zio Damping features ultra-lightweight in a small form factor and a universal mounting plate.

ZIO: 15HA Rubber Type

VIO: 25HA Rubber Type

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2FFVsu8i0jSpDciG3fLWr8%2Fimage.png?alt=media&#x26;token=0540857f-67f1-482c-b03f-abbaf96e0ef1" alt=""><figcaption><p>ZIO DAMPING PLATE</p></figcaption></figure>

## **Specification:**

### **Standard ZIO/VIO Damping Plate**

* Weight: 55g
* Dimension: 70 x 68mm&#x20;

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2F5grmMH6KVInhFSH7gzGN%2Fimage.png?alt=media&#x26;token=dd2b25df-63fc-4e0a-bab0-f74f4a6805e8" alt=""><figcaption></figcaption></figure>

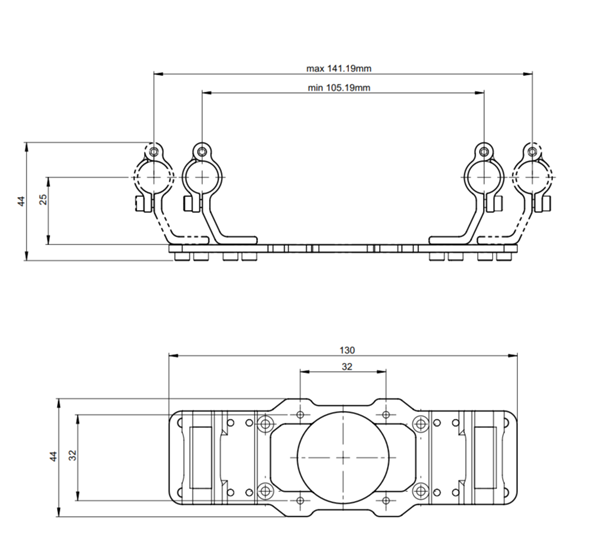

### **12mm Damping Adapter**

Weight : 50g

Dimension: 130 x 44 x 44 mm

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2FgBesOg7UqSrnC8IxmsRb%2Fimage.png?alt=media&#x26;token=6413fa9f-367b-4d49-91ed-db86d07da172" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2FsjaoqR5UVmsQ2VKcODCO%2Fimage.png?alt=media&#x26;token=3eacb352-6287-449e-bcb2-f14d6603365d" alt=""><figcaption></figcaption></figure>

## Mounting Guide

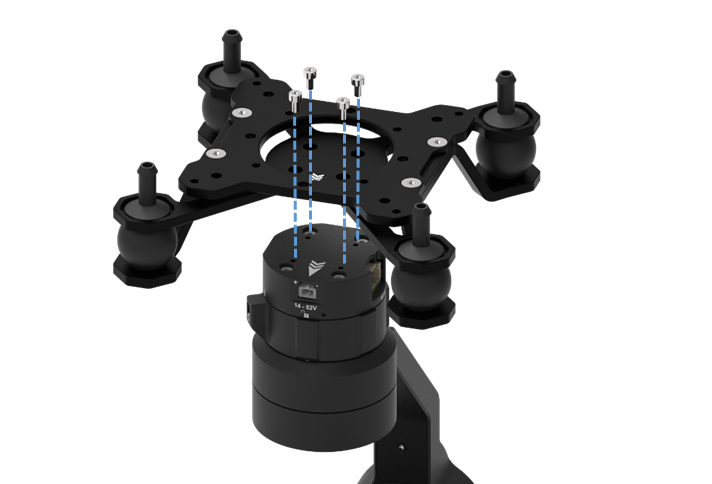

### 1.     With Standand Damping Mounting Plate

Using 20mm square M2 pattern to mountthe VIO quick release onto the VIO Damping plate

Torque: 27cN.m max

&#x20;

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2FJepwXxog5jwQFMMQbhdL%2Fimage.png?alt=media&#x26;token=1816a2c9-e0b7-4579-adf0-0d0524c4e758" alt=""><figcaption></figcaption></figure>

&#x20;                                                                                                                          &#x20;

### 2.     With 12mm Damping Adapter

If you drone using the 12mm rod for gimbal/payload mounting. The [12mm Damping Adapter](https://gremsy.com/online-store/zio-categories/zio-accessories-categories/12mm-damping-adapter) is create to supports this mounting standard by connecting to the VIO standard damping plate and covert the 12mm mounting standard.

Connect the Vio to the standard damping plate as Section 1. Then Using 4 x M3 to mountthe VIO quick release onto the VIO damping plate

Torque: 77cN.m max

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2FyhkiiZm8JMw88CMzW7sT%2Fimage.png?alt=media&#x26;token=84ba3c0a-b670-45bd-8b68-d06d07c17552" alt=""><figcaption></figcaption></figure>
