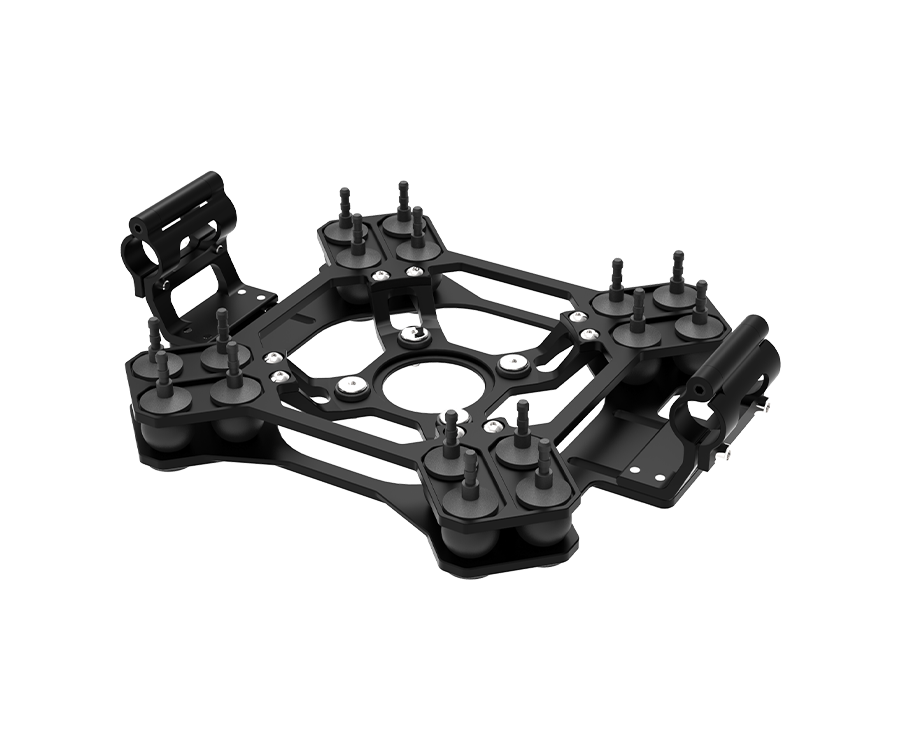

# DAMPING PLATE 16 BALL - DP16

The small and lightweight damping system can be mount under M600, S1000 platform easily or any drones which have dual carbon rod (12mm) underneath. The silicone rubber balls used on the damping can remove high-frequency vibration and deal with vibration better than normal rubber balls.

| GIMBAL SUPPORTED | COMPATIBLE RUBBER TYPE |
| ---------------- | ---------------------- |
| T3V3             | 35HA                   |
| S1V3             | 35HA                   |
| PIXY S           | 15HA                   |
| PIXY LR          | 15HA                   |

<figure><img src="/files/ZodkqQYmLgMF1qboj5Qz" alt=""><figcaption><p>T3 DAMPING PLATE</p></figcaption></figure>

<figure><img src="/files/KTjnohd2lFcdc1AH1gqT" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/Hl4mR0oQHkbyfl1fGKdc" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/Idtp8HjS63HYhOtm9U3V" alt=""><figcaption></figcaption></figure>


---
