# DAMPING EXTENSION

## 1. DAMPING EXTENSION FOR M300

The damping extension is intended to increase the Max Payload of the M300's Single Gimbal Damper up to 1500gr.

&#x20;\* For reference, the maximum payload of the M300 Single Gimbal Damper is 930gr.\ <br>

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2Fr7OjIEmbSWbFQFWDBxzc%2Fimage.png?alt=media&#x26;token=a5fa5452-da0b-4fcf-9777-215c09f2e522" alt=""><figcaption></figcaption></figure>

### In the box

* ADAPTER X4&#x20;
* WASHER x4&#x20;
* M3x8&#x20;
* SCREW x8&#x20;
* ALEN KEY x1

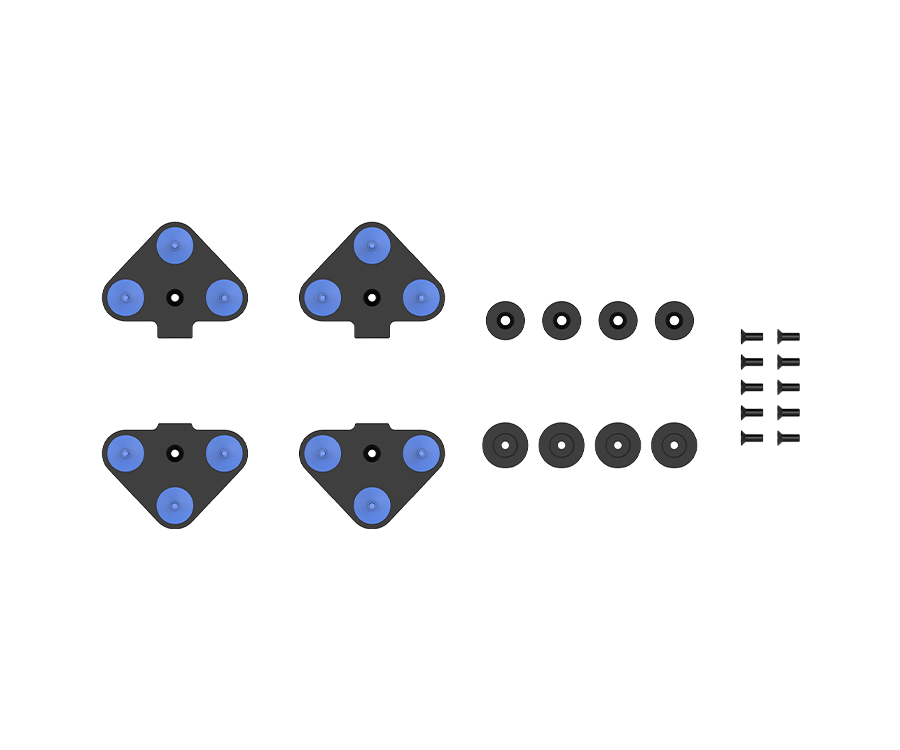

## 2. STANDARD DAMPING EXTENSION FOR PIXY SM

The Pixy SM - Standard damping extension is designed to support Pixy SM in use with M300 in aerial mapping missions.\
\
Follow this [Guide](https://gremsy.com/Data/Sites/1/media/manual-file/damping_assembly_pixy_sm.pdf) to custom the DJI standard damping before mounting Pixy SM to M300.

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2FJ6fST3vsiUYmaHUvLhRy%2Fimage.png?alt=media&#x26;token=c4849fe0-8e51-41d2-b96c-9a2e257e83ab" alt=""><figcaption></figcaption></figure>

### IN THE BOX

* Pixy SM Damping Extension x1&#x20;
