# AEVO DAMPING PLATE

Aevo Damping Plate is designed to mount the Aevo gimbal on various drone platforms including DJI M600, Hyspex Drone, Gyphon Dynamic Drone.

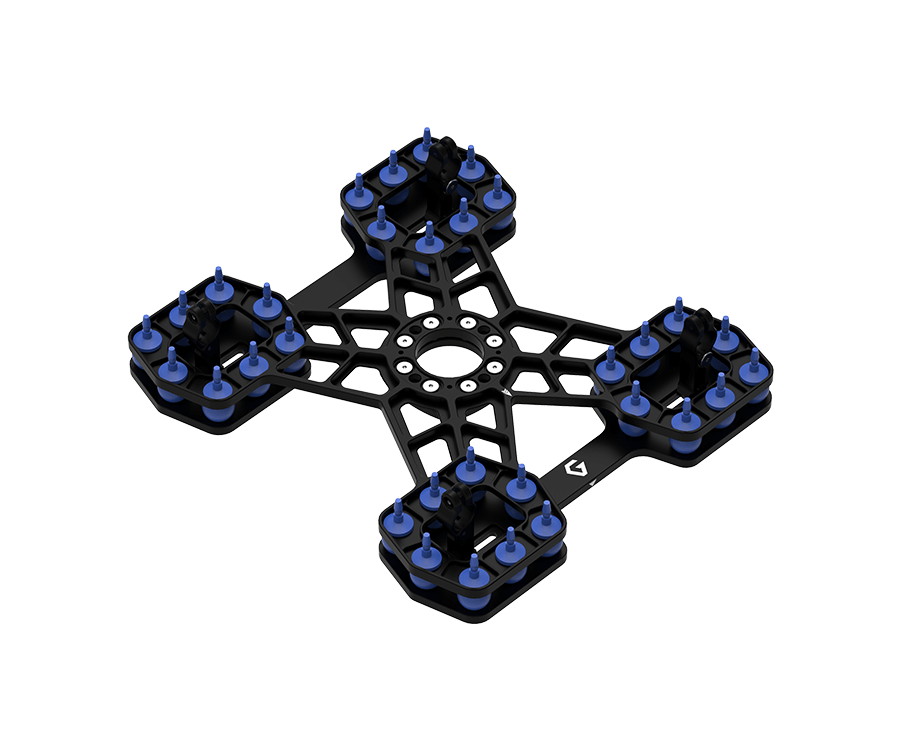

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2FAWwoY8f75oRr0BfQR8TD%2Fimage.png?alt=media&#x26;token=9d544697-afc9-400e-8f05-4cd59878bc76" alt=""><figcaption><p>Aevo Damping Plate </p></figcaption></figure>

### Specification:

| Frame material          | 6061 Alloy                                  |
| ----------------------- | ------------------------------------------- |
| Dimension (W x D X H)   | 215 x 233 x 53 mm                           |
| Weight                  | 415g                                        |
| Mounting                | clamp tube 12mm                             |
| Distance assemble range | 125-156 mm (measure from center of 2 tubes) |
| Vibration type          | Silicon rubber damper                       |
| Payload range           | 4.5 - 12 kg                                 |
| Operating temperature   | -10 to 50 ℃                                 |

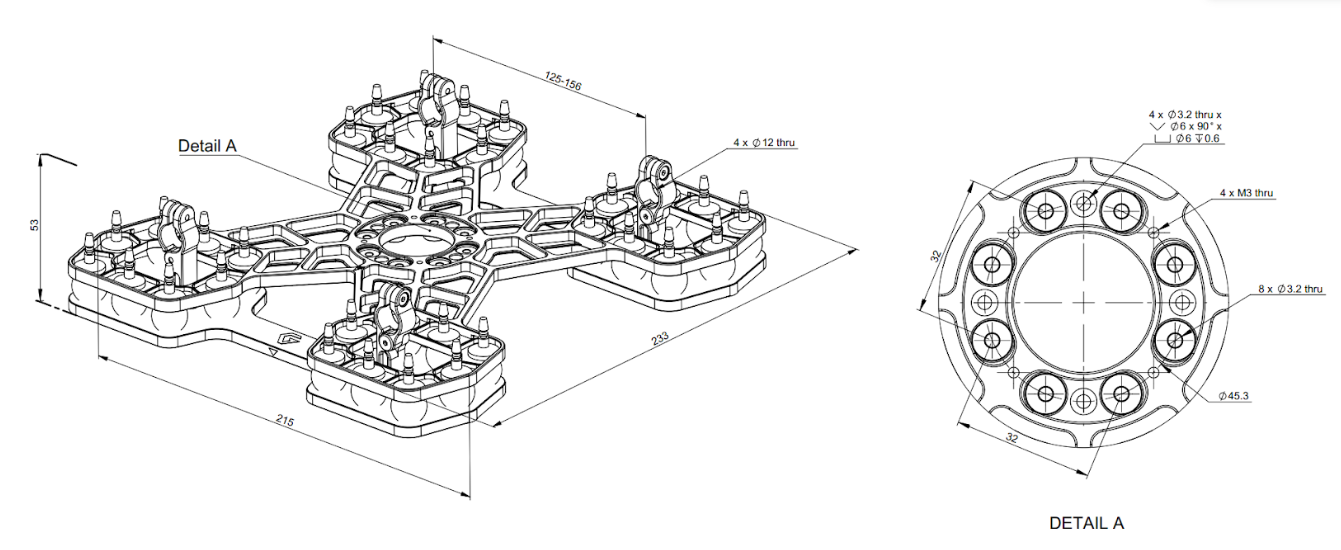

<figure><img src="https://3309772875-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnikHUDUd2JXqkOsnOi7l%2Fuploads%2FYCNjKMhvtRxXOTLWTAtM%2Fimage.png?alt=media&#x26;token=3e656b34-c132-442b-82bc-4062fbc16074" alt=""><figcaption><p>Aevo Damping Plate Dimension</p></figcaption></figure>
